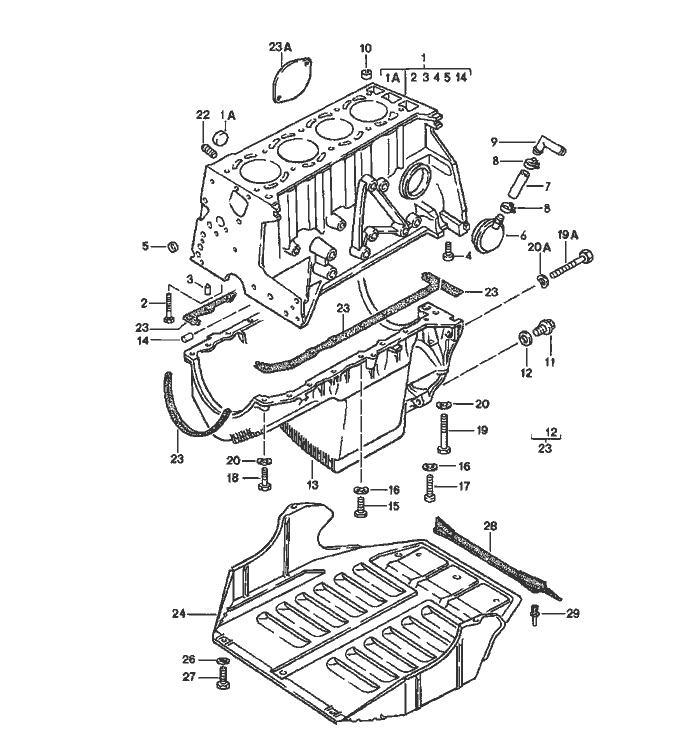

Porsche 924 Zylinder Block Teile

Pos	__Part_Number__	Description	Remark	Qty.	Model
		cylinder block
		with pistons
		oil pan
		protective plate f. engine
1	060 103 101 A	cylinder block	77	1	XF XH
		with pistons
1	047 103 101 A	cylinder block	78	1	XE XG
		with pistons
1A	059 103 113	lid		5
2	N 010 488 3	hexagon-head bolt		10
		M 12 X 85
3	999 012 034 00	straight pin		10
		8 H 6 X 12
4	N 014 724 3	pan-head Schraube		2
		M 10 X 20
5	N 011 903 3	lid		2
		16
(5)	N 011 907 4	lid		1
		14
6	052 103 129 A	bleeder		1	924
-	N 020 343 1	hose		*
7	-	18 X 2,5		1
8	999 512 346 00	hose clamp		2
		LC 16-25
(9)	047 103 227 A	elbow		1
10	046 103 139	tensioning sleeve		2
11	059 103 193	Schraube plug		1
		M 26 X 1,5
(11)	N 902 889 01	Schraube plug		1
		M 14 X 1,5
12	* N 043 854 1	sealing ring		1
		C 26 X 32
(12)	900 123 007 30	sealing ring		1
		A 14 X 18

Pos	__Part_Number__	Description	Remark	Qty.	Model
13	047 103 603 A	oil pan		1	924
		use also:
		047.103.635
		047.115.611.A
		047.115.641
		047.115.645
14	N 043 207 2	straight pin		2
		8 H 8 X 14
15	N 014 703 2	pan-head Schraube		13
		M 6 X 18
16	N 012 226 5	spring washer		13
17	N 014 722 2	pan-head Schraube		2
		M 6 X 60
18	N 014 725 2	pan-head Schraube		2
		M 8 X 25
19	N 100 113 01	pan-head Schraube		1
		M 8 X 140
(19)	N 044 724 2	pan-head Schraube		1
		M 8 X 70
19A	N 010 479 2	hexagon-head bolt		2
		M 10 X 88
(19A)	N 010 490 3	hexagon-head bolt		1
		M 12 X 55
(19A)	N 010 467 1	hexagon-head bolt		4
		M 12 X 45
20	N 012 241 11	spring washer		4
20A	900 028 032 02	spring washer		3
(20A)	900 028 014 02	spring washer		4
22	059 115 721	union		1	924
23	* 060 198 041 A	gasket set		1
		for oil sump
		protective plate f. engine
24	477 407 583 C	protective plate		1
25	N 015 433 1	speed nut	-78	2	924

Pos	__Part_Number__	Description	Remark	Qty.	Model
26	900 151 029 02	washer	-78	6	924
(26)	900 151 003 02	washer	79	6
27	N 013 976 1	tapping Schraube	-78	6	924
		6,3 X 13
(27)	N 010 215 13	hexagon-head bolt	79	6
		M 6 X 15
