Porsche 924 Kurbelwelle Teile

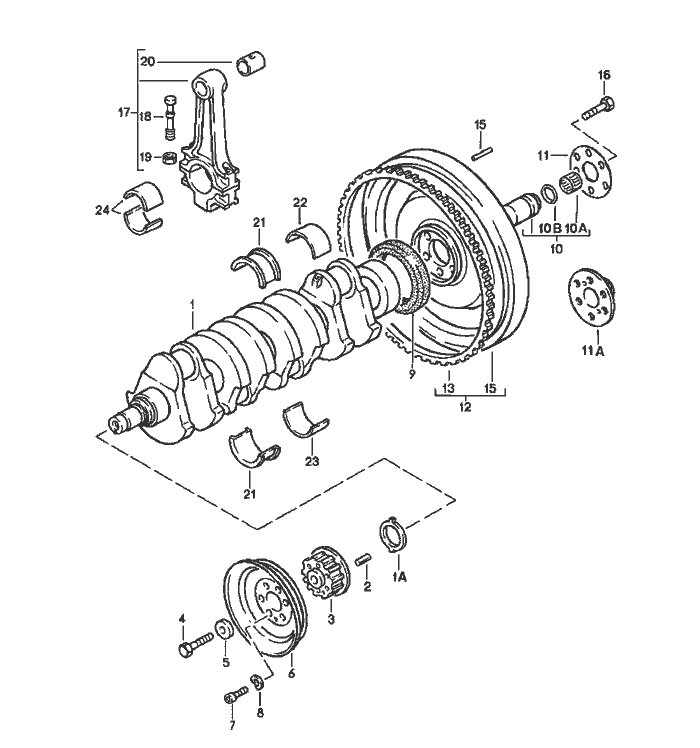

Kurbelwelle


Pos__Part_Number__DescriptionRemarkQty.Model
  crankshaft
  connecting rod
1 048 105 021crankshaft  1 XK XF XH
  M >> XH 00 0022
  M >> XF 00 0011
1 046 105 021 Acrankshaft  1
1A 046 105 177driver  1
2 N 023 255 1tensioning sleeve  1
  4 X 12
3 048 105 209toothed belt pulley  1
4 N 900 074 01hexagon-head bolt  1
  M 16 X 1,5 X 50
5 048 105 235washer  1
6 048 105 255 Av-belt pulley Left Hand Drive1 924
  simple
  v-belt
(6) 046 105 255 Fv-belt pulley  1 924
  double
  v-belt
(6) 477 105 255v-belt pulley  1
  triple
  v-belt
7 N 014 725 2pan-head Schraube  6
  M 8 X 25
8 N 012 241 11spring washer  6
  B 8
9 * 059 103 051 Dsealing ring  1
10 047 105 169 Abearing sleeve  1 924
  with
  needle-roller bearing
10A 047 105 313needle-roller bearing  1 924
10B 047 105 311shaft sealing ring  1 924
  15 X 21 X 5/7
11 046 105 175washer  1
11A 047 105 179stop AUT. 1 924

Pos__Part_Number__DescriptionRemarkQty.Model
12 046 105 269 Aflywheel  1 XK XF XH
(12) 047 105 269 Cflywheel  1 XE XG
(13) 046 105 275 Astarter ring 8 MM  1 924
15 N 013 210 1straight pin 6 M 6 X 16  3 924
16 N 040 110 1hexagon-head bolt M 12 X 1,5 X 22  6 924
  connecting rod
17 * 046 198 401connecting rod 1 set  1
18 059 105 425 Aconnecting rod bolt  8
19 * 059 105 427 Ahexagon nut  8
20 059 105 431connecting rod bush  4
  crankshaft bearing $ 60 MM M >> XH 00 0022 M >> XF 00 0011   924
21 * 059 105 501crankshaft bearing thrust bearing upper  1
21 * 059 105 507crankshaft bearing thrust bearing upper undersize 0.25 mm  X
21 059 105 513crankshaft bearing thrust bearing upper undersize 0.50 mm  X
21 059 105 519crankshaft bearing thrust bearing upper undersize 0,75 mm  X
21 * 059 105 531crankshaft bearing thrust bearing lower  X

Pos__Part_Number__DescriptionRemarkQty.Model
21 * 059 105 537crankshaft bearing thrust bearing lower  X
  undersize 0.25 mm
21 059 105 543crankshaft bearing thrust bearing lower undersize 0.50 mm  X
21 059 105 549crankshaft bearing thrust bearing lower  X
  undersize 0,75 mm
22 059 105 561crankshaft bearing  4
  upper numbers 1,2,4,5
22 * 059 105 567crankshaft bearing  X
  upper numbers 1,2,4,5 undersize 0.25 mm
22 059 105 573crankshaft bearing  X
  upper numbers 1,2,4,5 undersize 0.50 mm
22 059 105 579crankshaft bearing  X
  upper numbers 1,2,4,5 undersize 0,75 mm
23 059 105 591crankshaft bearing lower  4
  numbers 1,2,4,5
23 * 059 105 597crankshaft bearing lower  X
  numbers 1,2,4,5 undersize 0.25 mm
23 059 105 603crankshaft bearing lower numbers 1,2,4,5 undersize 0.50 mm  X
23 059 105 609crankshaft bearing lower  X
  numbers 1,2,4,5 undersize 0,75 mm

Pos__Part_Number__DescriptionRemarkQty.Model
  crankshaft bearing 64 MM $
21 * 046 105 501crankshaft bearing thrust bearing  2
21 * 046 105 507crankshaft bearing thrust bearing undersize 0.25 mm  X
21 * 046 105 513crankshaft bearing thrust bearing undersize 0.50 mm  X
21 * 046 105 519crankshaft bearing thrust bearing undersize 0,75 mm  X
22 * 046 105 561crankshaft bearing  4
  upper numbers 1,2,4,5
22 * 046 105 567crankshaft bearing  X
  upper numbers 1,2,4,5 undersize 0.25 mm
22 * 046 105 573crankshaft bearing  X
  upper numbers 1,2,4,5 undersize 0.50 mm
22 * 046 105 579crankshaft bearing  X
  upper numbers 1,2,4,5 undersize 0,75 mm
23 * 046 105 591crankshaft bearing lower  4
  numbers 1,2,4,5
23 046 105 597crankshaft bearing lower  X
  numbers 1,2,4,5 undersize 0.25 mm
23 * 046 105 603crankshaft bearing lower numbers 1,2,4,5 undersize 0.50 mm  X

Pos__Part_Number__DescriptionRemarkQty.Model
23 * 046 105 609crankshaft bearing lower numbers 1,2,4,5 undersize 0,75 mm  X
  connecting-rod bearing
24 046 105 701connecting-rod bearing  8
24 046 105 707connecting-rod bearing undersize 0.25 mm  X
24 046 105 713connecting-rod bearing undersize 0.50 mm  X
24 * 046 105 719connecting-rod bearing undersize 0,75 mm  X
