Porsche 924 Nockenwelle Teile

Nockenwelle

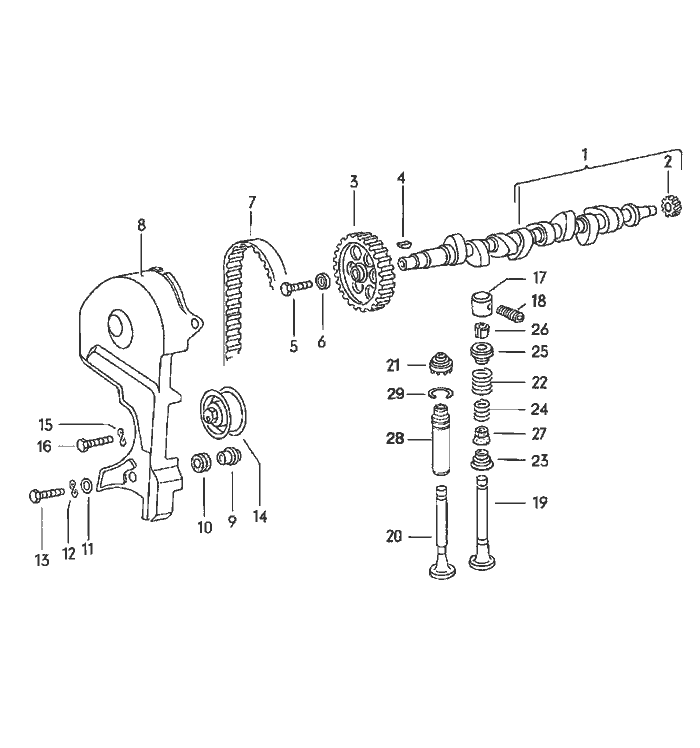

Pos__Part_Number__DescriptionRemarkQty.Model
  camshaft
  valves
1 046 109 021camshaft  1
1 047 109 021camshaft 77 1 XF XH
2 048 109 109drive wheel  1
  f.ignition distributor
3 049 109 111 Cgear wheel  1
4 N 012 708 2woodruff key  1
5 N 010 137 1hexagon-head bolt  1
  M 12 X 1,5 X 35
6 056 109 143washer  1
7 056 109 119 Atoothed belt  1
8 048 109 123cover for toothed belt  1 XK XE XG
8 047 109 121cover for toothed belt  1 XJ XF XH
9 056 109 135bearing sleeve  3
10 056 129 669 Bgrommet  3
11 N 011 612 3washer  3
12 N 012 226 5spring washer  3
13 N 010 218 6hexagon-head bolt  3
  M 6 X 25
14 056 109 243 Dtensioning roller  1
15 N 012 231 1spring washer  1
16 N 010 455 3Schraube  1
  M 10 X 55
17 046 109 311cam follower  8
18 046 109 453 Cadjusting Schraube  8
18 046 109 453 Dadjusting Schraube  X
  1 noctch
18 046 109 453 Eadjusting Schraube  X
  2 notches

Pos__Part_Number__DescriptionRemarkQty.Model
18 046 109 453 Fadjusting Schraube  X
  3 notches
18 046 109 453 Gadjusting Schraube  X
  4 notches
19 046 109 601 Aintake valve  4 XK XJ XE XG
19 046 109 601intake valve 77 4 XF XH
20 046 109 611 Aexhaust valve  4 924
21 046 109 617roto cap  4 924
  clockwise rotation
22 046 109 623valve spring  8
  outer
23 046 109 629concave washer  4 924
  lower
  intake valve
24 046 109 633valve spring  8
  inner
25 059 109 641 Aconcave washer  8
  upper
26 059 109 651collet  16
27 * 046 109 675 Avalve stem seal  8
28 046 103 415 Avalve guide  4 924
  exhaust
  standard dimension
  14,04 MM
  without groove
28 046 103 419 Avalve guide  4 924
  exhaust
  1st oversize
  one groove
  14,24 MM
28 046 103 423 Avalve guide  4 924
  exhaust
  2nd oversize
  two grooves
  14,44 MM

Pos__Part_Number__DescriptionRemarkQty.Model
28 048 103 415 Avalve guide intake  4 924
  standard dimension
  without groove 14,04 MM only together with 046.109.629
28 048 103 419 Avalve guide intake  4 924
  1st oversize
  one groove 14,24 MM only together with 046.109.629
28 048 103 423 Avalve guide intake  4 924
  2nd oversize
  two grooves 14,44 MM only together with 046.109.629
29 N 012 460 1circlip  8
