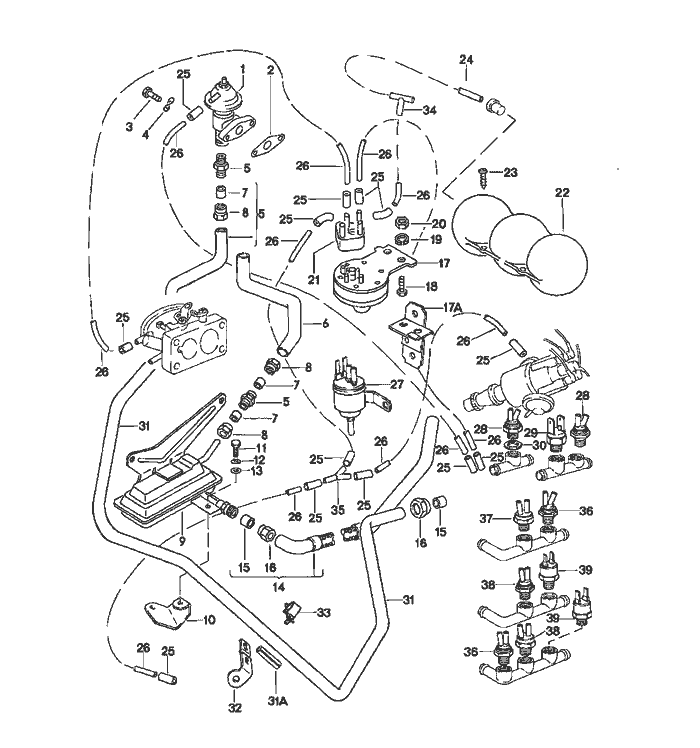

Porsche 924 Auspuff Gas Recirculation Teile

Pos	__Part_Number__	Description	Remark	Qty.	Model
		exhaust gas recirculation			924
1	A 049 131 503 A	egr valve		1	XF XH XG
1	049 131 503 F	egr valve		1	XF XH XG
1	047 131 503 B	egr valve	AUT.	1	XE XG
1	047 131 503 B	egr valve		1	XE
		F >>92482 01409
1	047 131 503 C	egr valve		1	XE
		F 92482 01410>>
2	047 131 547	gasket		1
3	N 010 218 6	hexagon-head bolt		2
		M 6 X 25
4	N 012 226 5	spring washer		2
5	N 020 755 1	union		2
6	047 131 632 A	pipeline		1
7	N 020 822 1	cutting ring		3
8	N 021 023 1	union nut		3
9	047 131 623	exhaust gas filter		1
10	047 131 641	strut		1
11	900 075 087 02	hexagon-head bolt		2
		8 X 16
12	N 012 241 11	spring washer		2
13	N 011 525 13	washer		2
14	047 131 631 E	pipeline		1
15	N 020 824 1	cutting ring		2
16	N 021 026 2	union nut		2
17	063 131 537	vacuum booster		1
17A	047 131 685 A	support		1
18	999 072 005 09	hexagon-head bolt		2
		M 6 X 12

Pos	__Part_Number__	Description	Qty.
19	N 012 226 5	spring washer	2
20	900 076 010 02	hexagon nut	2
21	049 131 185	distributing piece	1
22	058 131 541	vacuum reservoir	1
23	N 090 186 1	tapping Schraube	2
		B 4,8 X 13
-	N 020 140 2	hose	*
		5 X 1
24	-	575 MM	1
-	N 020 353 5	hose	*
25	-	40 MM	X
-	N 020 139 1	hose	*
		4 X 1
26	-		X
27	047 906 283	diverter valve	1
28	058 131 851 A	thermo valve	1
29	477 959 470	temperature switch	1
30	N 013 808 3	sealing ring	X
		F 92472 30050>>
		F 92473 30050>>
31	047 131 631 G	pipeline	1
31A	047 131 677	protective tube	1
32	047 131 649 G	support	1
33	047 131 645	pipe clamp	2
34	999 137 004 40	t-socket	1
35	056 129 971	y-piece	1
-	N 020 806 1	Schraube socket	1
-	N 013 820 3	sealing ring	1
		16 X 20

Pos	__Part_Number__	Description	Qty.
36	047 131 851	temperature switch	1
37	047 131 851 A	temperature switch	1
		F 92482 00060>>
38	058 131 851 A	thermo valve	1
39	047 131 851 B	temperature switch	1
