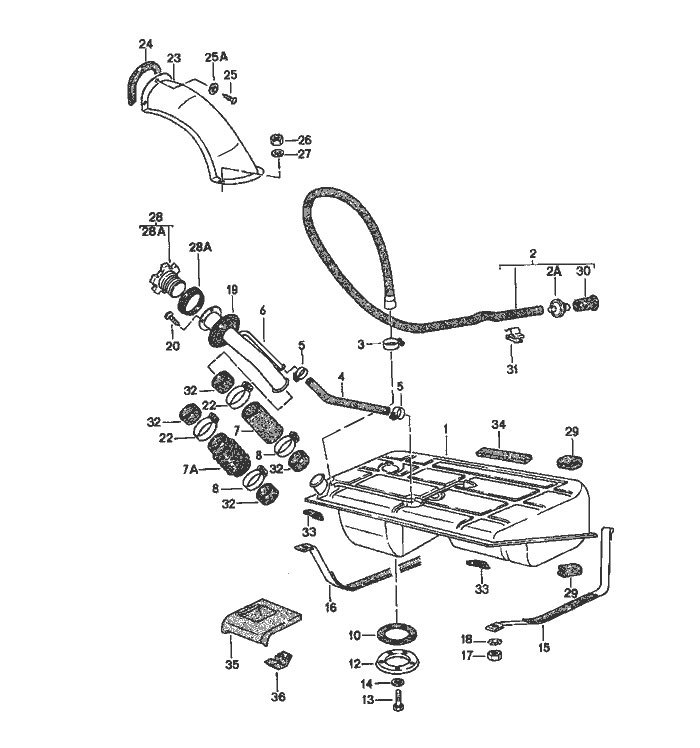

Porsche 924 Kraftstoff Tank Teile

Pos	__Part_Number__	Description	Remark	Qty.	Model
13	N 010 205 6	hexagon-head bolt		5	924
		M 5 X 10
14	803 919 131	sealing ring		5	924
15	477 201 311 B	restraining strap	Left	1
		lower
(15)	477 201 395	restraining strap	Left	1
		upper
16	477 201 302	restraining strap	Right	1
17	311 101 463	hexagon nut		2
		M 8
18	N 012 108 2	serrated lock washer		2
19	477 201 317	gasket		1
20	N 014 086 4	tapping Schraube		4
		B 3,5 X 13
22	111 501 159 B	hose clamp		1
		44 -64
23	477 201 347 C	cover		1
24	477 201 351	gasket		1
25	N 013 959 3	tapping Schraube		3
		B 3,5 X 16
25A	900 151 028 02	washer		3
26	N 011 005 14	hexagon nut		2
27	900 025 003 02	washer		2
-	N 020 902 1	tie-wrap		1
		6,5 X 210
28	477 201 551	lid		1
28A	477 201 557	gasket		1
29	481 201 647	intermediate piece		4
30	321 201 890 A	end piece		1
31	477 971 939	cable terminal		12
32	944 201 217 00	hose		2

Pos	__Part_Number__	Description	Qty.
33	477 201 295 B	intermediate layer	1
34	477 201 295 B	intermediate layer	4
35	477 863 160	gasket	1
36	477 863 162 A	sound absorber	2
