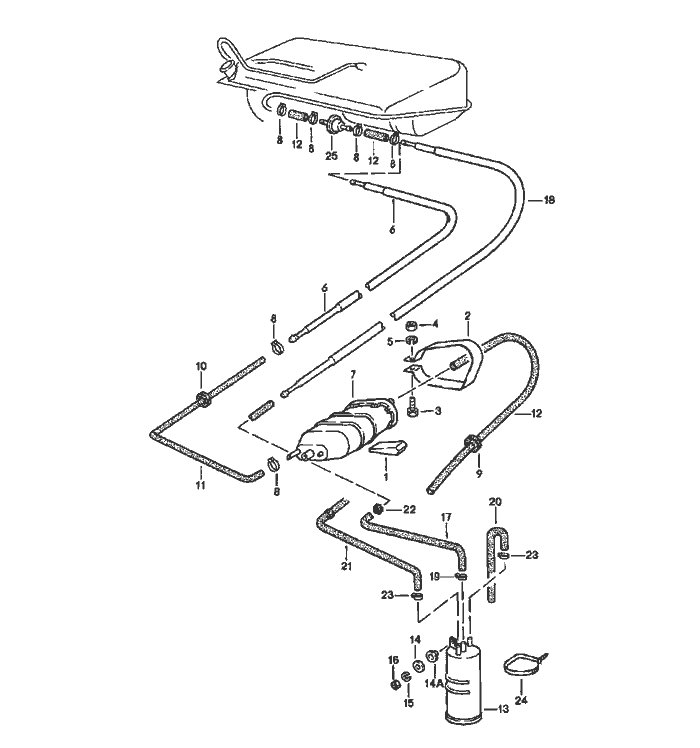

Porsche 924 Carbon Canister Teile

Pos	__Part_Number__	Description	Qty.	Model
		carbon canister		924
		only together with
		engine
		74 KW (100 DIN-PS)
1	477 201 299	desk pad	1
2	477 201 385	support	1
3	N 010 217 4	hexagon-head bolt	1
		M 6 X 20
4	900 076 010 02	hexagon nut	1
5	N 012 006 4	lock ring	1
6	477 201 743	pipe	1
7	171 201 801	carbon canister	1
8	311 133 343 A	hose clamp	2
9	477 805 123	grommet	2
10	111 971 911 A	rubber sleeve	1
-	N 020 355 1	fuel hose	*
		5 X 2,5
11	-		1
-	N 020 374 1	hose	*
12	-		1
25	810 201 186 A	bleeder valve	1
		only together with
		engine
		85 KW (115 DIN-PS)
8	311 133 343 A	hose clamp	2
-	N 020 374 1	hose	*
12	-		1
13	993 201 221 01	carbon canister	1
14	900 151 029 02	washer	2
14A	477 201 279	sleeve	2

Pos	__Part_Number__	Description	Qty.
15	N 012 006 4	lock ring	2
16	900 076 010 02	hexagon nut	2
-	999 181 716 50	hose 9,5 X 15,5	*
17	-	630 MM	1
18	477 201 743 A	pipeline	1
19	N 023 577 2	hose clamp A 9 X 14	1
-	N 020 374 1	hose	*
20	-	600 MM	1
21	-	1115 MM	1
22	021 119 569 A	rubber sleeve	2
23	999 512 265 02	hose clamp	2
24	N 020 906 3	tie-wrap 6,5 X 390	1
25	810 201 186 A	bleeder valve	1
