Porsche 924 Kraftstoff System Teile

Kraftstoff System

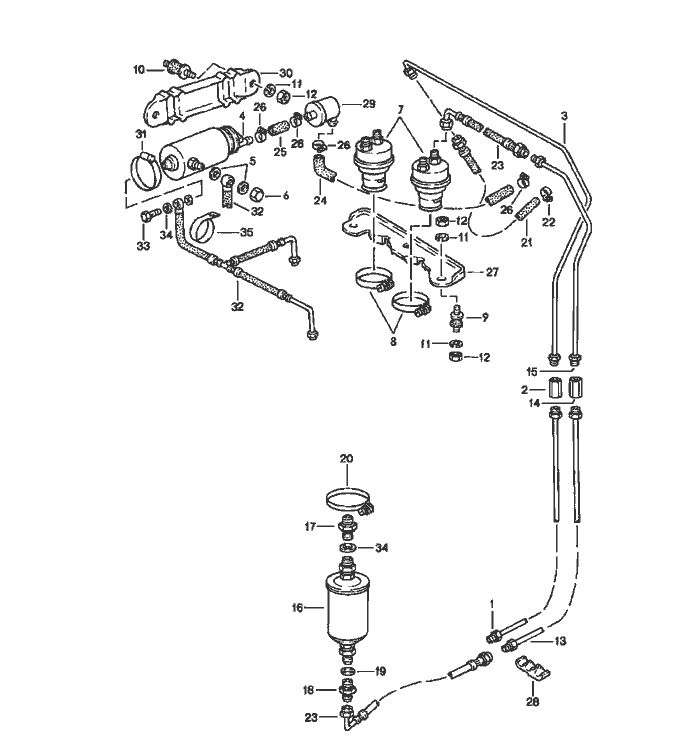

Pos__Part_Number__DescriptionRemarkQty.Model
  fuel system   924
  F 92472 02047>> F >>92482 99999 F 92473 00001>> F >>92483 99999
1 477 209 175fuel line return line  1
2 477 209 161connecting piece  1
3 477 209 176fuel line return line F >>92482 01225 F >>92483 30098  1
  use also: 477.209.071.A
(3) 477 209 176 Afuel line return line F 92482 01226>> F 92483 30098>>  1
4 810 906 091 Bfuel pump F >>92472 04806 F >>92473 00187  1
(4) 911 608 102 00fuel pump F 92472 04806>> F 92473 00188>>  1
5 900 123 033 20sealing ring A 10 X 13,5  2
6 N 011 065 1cap nut M 10 X 1  1
7 477 209 083pressure accumulator  2
8 111 501 159 Bhose clamp 44 -64 MM  2
9 810 906 219 Abonded rubber mounting  3
10 944 610 115 00bonded rubber mounting  X
11 N 012 006 4lock ring B 6  X
12 900 076 010 02hexagon nut M 6  X

Pos__Part_Number__DescriptionRemarkQty.Model
13 477 209 177fuel line F >>92482 01225 F >>92483 30098  1
  use also: 477.209.075.A
(13) 477 209 177 Afuel line F 92482 01226>> F 92483 30099>>  1
14 477 209 169connecting piece  1
15 477 209 178fuel line F >>92482 01225 F >>92483 30098  1
  use also: 477.209.075.A
(15) 477 209 178 Afuel line F 92482 01226>> F 92483 30099>>  1
16 930 110 076 00fuel filter  1
17 930 110 199 00Schraube socket  1
18 930 110 198 00Schraube socket  1
19 900 123 007 30sealing ring A 14 X 18  1
20 111 501 159 Bhose clamp A 12 X 63  1
21 477 209 071fuel line return line F >>92472 04133 F >>92473 00149  1
(21) 477 209 071 Cfuel hose return line F 92472 04134>> F 92473 00150>>  1
22 999 512 554 00hose clamp LB 12 -20  1
23 477 209 075fuel hose F >>92472 04133 F >>92473 00149  2

Pos__Part_Number__DescriptionRemarkQty.Model
(23) 477 209 075 Afuel hose  2
  F 92472 04134>>
  F 92473 00150>>
24 477 209 199 Afuel hose  1
-999 181 168 50hose  *
  12 X 18,5
25 -50 MM  1
26 999 512 554 00hose clamp  4
  A 9 X 18
27 477 209 373support  1
28 911 356 543 01support  15
29 477 209 233fuel filter  1
30 911 608 105 00support  1
31 999 512 394 00hose clamp  1
32 477 209 241fuel hose  1
  F >>92472 04133
  F >>92473 00149
(32) 477 209 241 Afuel hose  1
  F 92472 04134>>
  F 92473 00150>>
33 N 021 071 2banjo bolt  1
  F 92472 04807>>
  F 92473 00187>>
34 N 013 812 3sealing ring  2
35 N 020 690 1hose clamp  1
