Porsche 924 Kraftstoff System Teile

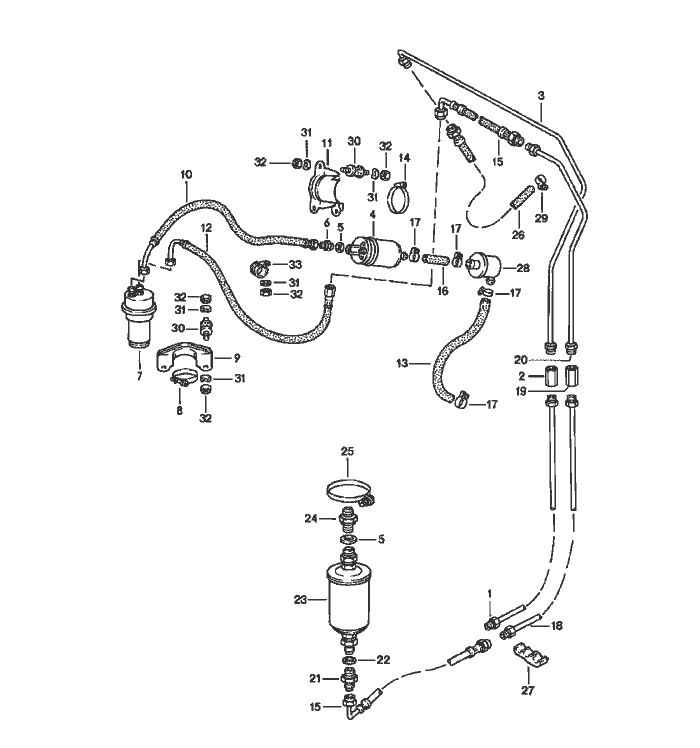

Kraftstoff System


Pos__Part_Number__DescriptionRemarkQty.Model
  fuel system   924
  F 92492 00001>>
  F >>92492 03645
  F 92493 00001>>
  F >>92493 30200
1 477 209 175fuel line  1
  return line
2 477 209 161connecting piece  1
3 477 209 176 Afuel line  1
  return line
4 911 608 102 00fuel pump  1
5 N 013 812 3sealing ring  2
  A 12 X 15,5
6 911 608 951 00check valve  1
7 931 110 140 00pressure accumulator  1
8 999 512 199 02clamp  1
9 477 209 291support  1
10 477 209 093 Afuel hose  1
11 477 209 295 Asupport  1
12 477 209 047 Afuel hose  1
13 477 209 199 Cfuel hose  1
14 999 512 394 00hose clamp  1
15 477 209 075 Afuel hose  2
-999 181 168 50hose  X
  12 X 18,5
16 -50 MM  1
17 N 023 526 2hose clamp  4
  A 9 X 18
18 477 209 177 Afuel line  1
19 477 209 169connecting piece  1
20 477 209 178 Afuel line  1

Pos__Part_Number__DescriptionRemarkQty.Model
21 930 110 198 00Schraube socket  1
22 900 123 007 30sealing ring A 14 X 18  1
23 930 110 076 00fuel filter  1
24 930 110 199 00Schraube socket  1
25 111 501 159 Bhose clamp A 12 X 63  1
26 477 209 071fuel line  1
27 911 356 543 01support  15
28 477 209 233fuel filter  1
29 999 512 554 00hose clamp LB 12 -20  1
30 944 610 115 00bonded rubber mounting  X
31 N 012 006 4lock ring B 6  X
32 900 076 010 02hexagon nut M 6  X
33 N 020 690 1hose clamp  1
