Porsche 924 Kraftstoff System Teile

Kraftstoff System


Pos__Part_Number__DescriptionRemarkQty.Model

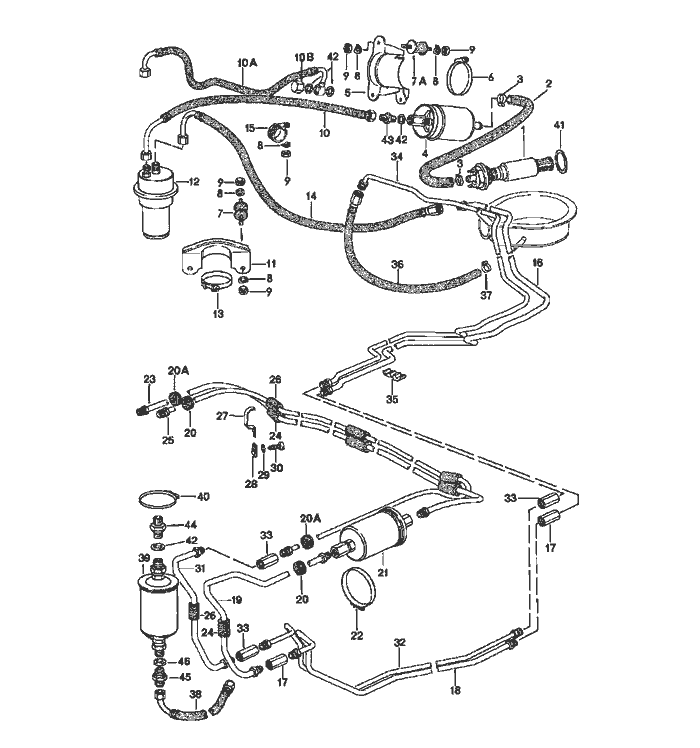

  fuel system
  F 92492 03646>>
  F 92493 30201>>
1 928 608 013 00in-tank fuel pump  1
2 477 209 199 Dfuel hose  1
3 N 023 526 2hose clamp  2
  A 9 X 18
4 911 608 102 00fuel pump  1
5 477 209 295 Asupport  1
6 999 512 394 00hose clamp  1
7 W 928 610 115 00bonded rubber mounting  5
7 944 610 115 00bonded rubber mounting  5
8 N 012 226 5spring washer  10
9 900 076 010 02hexagon nut  10
10 477 209 093 Afuel hose  1
11 477 209 291support  1
12 931 110 140 00pressure accumulator  1
  40 CCM
13 999 512 199 02clamp  1
14 477 209 047 Bfuel hose  1
15 N 020 690 1hose clamp  1
16 477 209 178 Afuel line  1
17 477 209 169connecting piece  2
18 477 209 177 Afuel line  1
33 477 209 161connecting piece  3
34 477 209 176 Afuel line  1
  return line
35 911 356 543 01support  13
36 477 209 071 Cfuel hose  1

Pos__Part_Number__DescriptionRemarkQty.Model
37 N 023 577 2hose clamp  1
38 477 209 047 Afuel hose  1 924
39 930 110 076 00fuel filter  1 924
40 111 501 159 Bhose clamp 9 X 56  1 924
41 928 201 187 02sealing ring  1
42 N 013 812 3sealing ring A 12 X 15,5  2
43 N 020 704 2connection piece  1
(43) 911 608 951 00check valve  X
44 930 110 199 00Schraube socket  1 924
45 930 110 198 00Schraube socket  1 924
46 900 123 007 30sealing ring A 14 X 18  1 924
