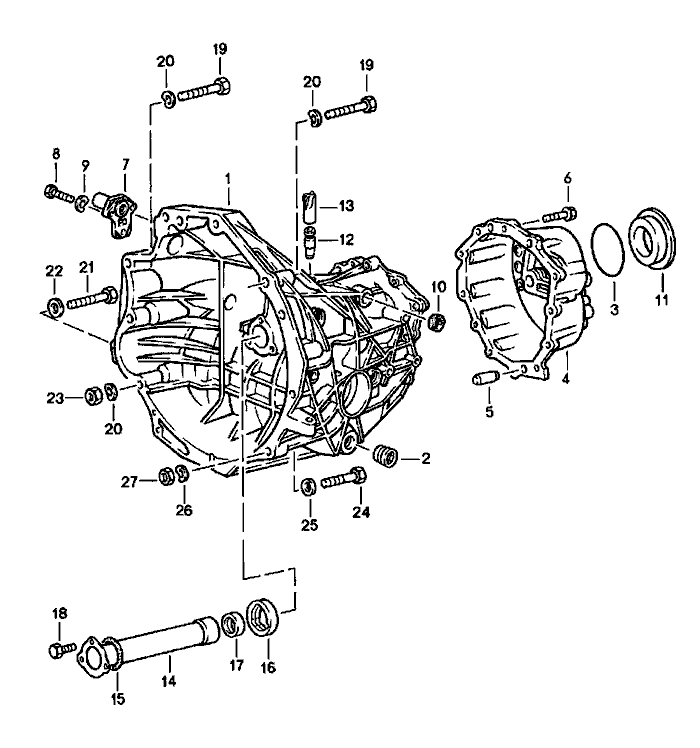

Porsche 924 Ersatz- Getriebe Teile

Pos	__Part_Number__	Description	Qty.	Model
		replacement transmission		924
		transmission case
		4-speed
-	088 300 043 J	replacement transmission	1	YR
-	088 300 043 C	replacement transmission	1	XT
		ready for installation
		G >> XT 20 02 9
-	088 300 043 H	replacement transmission	1	XT
		ready for installation
		G XT 21 02 9 >>
1	088 301 103 C	transmission case	1
2	111 301 127 E	Schraube plug	1
		M 24 X 1,5
3	* 088 301 185	sealing ring	1
4	088 301 211 C	end plate	1	YR XT
		G >> YR 20 02 9
(4)	088 301 211 G	end plate	1	YR XT
		G YR 21 02 9 >>
5	014 301 473	guide sleeve	2
		12 M 6 X 28
6	N 010 332 4	hexagon-head bolt	12
		M 8 X 32
7	088 301 453	lid	1
8	900 075 193 08	hexagon-head bolt	3
		M 6 X 16
9	N 012 226 5	spring washer	3
10	* 928 303 120 01	shaft sealing ring	1
11	088 301 467 B	lid	1
12	088 301 473	breather pipe	1
13	003 507 145 A	cap	1
14	088 301 687 A	protective tube	1
15	088 301 699 A	sealing ring	1
16	088 301 697 B	centring ring	1

Pos	__Part_Number__	Description	Qty.
17	999 113 275 40	shaft sealing ring	1
18	N 090 194 2	hexagon-head bolt M 7 X 16	3
19	N 010 183 1	hexagon-head bolt M 12 X 75	2
20	900 028 014 02	spring washer	3
21	N 010 185 3	hexagon-head bolt M 12 X 80	1
22	N 011 531 7	washer	1
23	N 011 020 8	hexagon nut	1
24	N 010 460 2	hexagon-head bolt M 10 X 60	1
25	N 011 527 2	washer	1
26	N 012 230 6	spring washer	1
27	N 011 010 6	hexagon nut	1
		back-up light switch see group 9/06/00
