Porsche 924 Gears und Shafts Teile

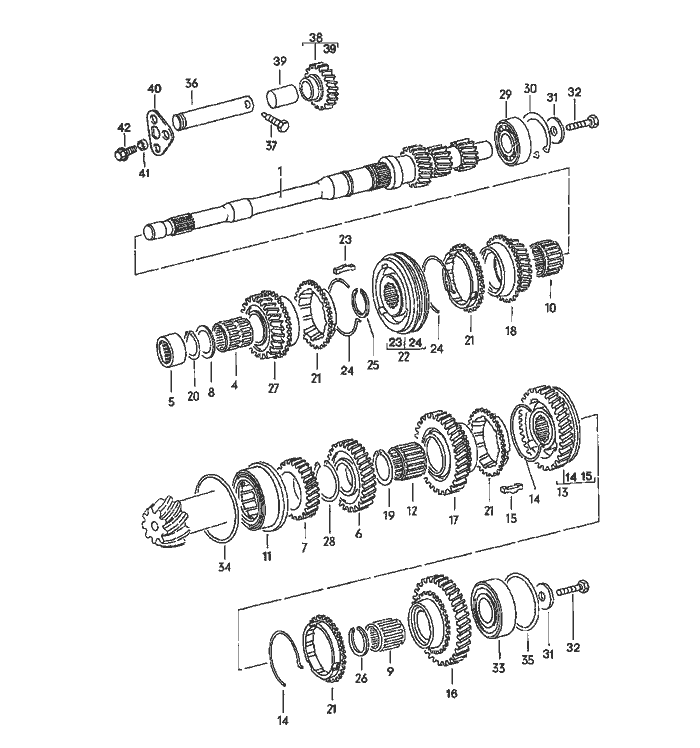

Gears und Shafts


Pos__Part_Number__DescriptionRemarkQty.Model
  gears and shafts   924
  4-speed
1 088 311 105 ADdrive shaft  1
4 016 311 115needle-roller bearing  1
  4th speed
5 088 311 123needle sleeve  1
6 088 311 131 A3rd gear  1
7 088 311 1494th speed  1
8 088 311 155 Athrust washer  1
9 088 311 2071st gear  1
10 088 311 2133rd gear  1
11 088 311 220bearing  1
12 088 311 229 Bneedle-roller bearing  1
  2nd gear
13 088 311 239 Asynchroniser ring  1
  1st/2nd gear
  with
  operating sleeve
14 088 311 311 Dspring  2
  1st/2nd gear
15 088 311 313detent  3
16 088 311 257 Ashifting gear  1
  1st gear
17 088 311 271 Ashifting gear  1
  2nd gear
18 088 311 285 Ashifting gear  1
  3rd gear
19 088 311 287circlip  1
  1,65
(19) 088 311 287 Acirclip  X
  1,70
(19) 088 311 287 Bcirclip  X
  1,75

Pos__Part_Number__DescriptionRemarkQty.Model
20 088 311 287circlip  1
  1,65
(20) 088 311 287 Bcirclip  X
  1,75
(20) 016 311 344circlip  1
21 088 311 295 Bsynchroniser ring  4
  1st gear
  2nd gear
  3rd gear
  4th speed
  with
  operating sleeve
22 088 311 301 Bsynchronising hub  1
  3rd/4th gear
  with
  operating sleeve
23 088 311 245detent  3
24 088 311 311 Bspring  2
  3rd/4th gear
25 088 311 317circlip  1
  1,50
(25) 088 311 317 Bcirclip  X
  1,56
(25) 088 311 317 Ccirclip  X
  1,62
26 088 311 327circlip  1
  1,50
(26) 088 311 327 Acirclip  X
  1,55
(26) 088 311 327 Bcirclip  X
  1,60
27 088 311 351 Ashifting gear  1
  4th speed
28 088 311 363 AAcirclip  1
  2,34
(28) 088 311 363 ACcirclip  X
  2,36

Pos__Part_Number__DescriptionRemarkQty.Model
(28) 088 311 363 AEcirclip  X
  2,38
(28) 088 311 363 AGcirclip  X
  2,40
(28) 088 311 363 AJcirclip  X
  2,42
(28) 088 311 363 ALcirclip  X
  2,44
(28) 088 311 363 ANcirclip  X
  2,46
(28) 088 311 363 AQcirclip  X
  2,48
(28) 088 311 363 AScirclip  X
  2,50
29 088 311 371 Edeep-groove ball bearing  1
30 N 012 292 2circlip  1
  68 X 2,5
31 N 900 913 01washer  2
32 N 010 239 11hexagon-head bolt  2
  M 8 X 18
33 088 311 375taper roller bearing  1
34 088 311 391shim  1
  0,20
(34) 088 311 391 Ashim  X
  0,25
(34) 088 311 391 Bshim  X
  0,30
(34) 088 311 391 Cshim  X
  0,35
(34) 088 311 391 Dshim  X
  0,40
(34) 088 311 391 Eshim  X
  0,65
(34) 088 311 391 Fshim  X
  0,90

Pos__Part_Number__DescriptionRemarkQty.Model
(34) 088 311 391 Gshim  X
  1,15
35 088 311 393shim  1
  0,24
(35) 088 311 393 Ashim  X
  0,27
(35) 088 311 393 Bshim  X
  0,30
(35) 088 311 393 Cshim  X
  0,33
(35) 088 311 393 Dshim  X
  0,36
(35) 088 311 393 Eshim  X
  0,39
(35) 088 311 393 Fshim  X
  0,42
(35) 088 311 393 Gshim  X
  0,45
(35) 088 311 393 Hshim  X
  0,69
(35) 088 311 393 Jshim  X
  0,93
(35) 088 311 393 Kshim  X
  1,17
(35) 088 311 393 Lshim  X
  1,41
36 088 311 519 Aaxle  1
  G >> YR 20 02 9
(36) 016 311 519 Aaxle  1
  G YR 21 02 9 >>
37 088 311 527 Ahexagon-head bolt  1
  G >> YR 20 02 9
38 088 311 529reverse idler gear  1
  G >> YR 20 02 9
(38) 016 311 529 Dreverse idler gear  1
  G YR 21 02 9 >>

Pos__Part_Number__DescriptionRemarkQty.Model
39 088 311 533bush  1
40 016 311 853 Aretainer plate G YR 21 02 9 >>  1
41 088 301 291 Ashouldered bolt G YR 21 02 9 >>  1
42 088 301 291 Ashouldered bolt M 8 X 16 G YR 21 02 9 >>  1
