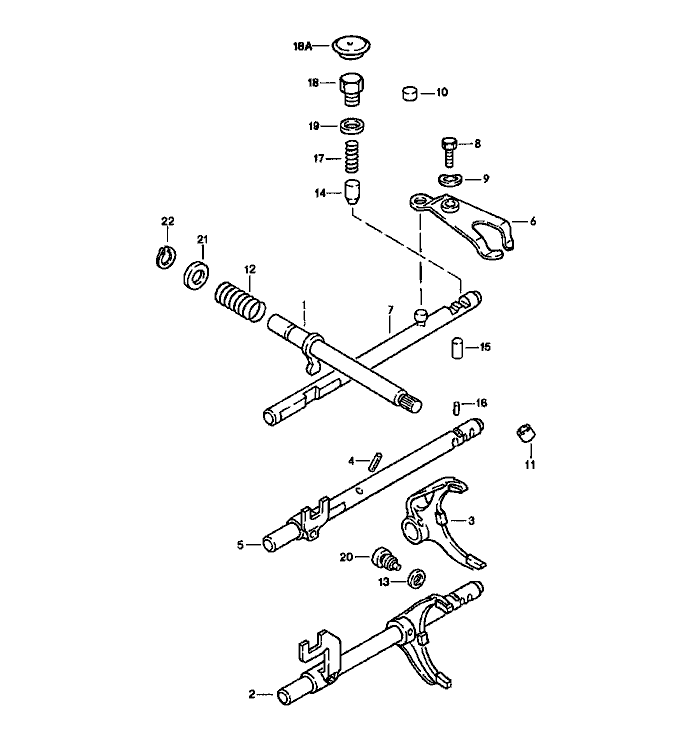

Porsche 924 Getriebe Control Teile

Pos	__Part_Number__	Description	Remark	Qty.	Model
		transmission control			924
		4-speed
1	088 311 541	shift rod		1
2	088 311 549 A	shift fork		1
		1st/2nd gear
3	088 311 561 B	shift fork		1
		3rd/4th gear
4	N 900 073 01	tensioning sleeve		1
		6 X 22
5	088 311 565 A	selector shaft		1
		3rd/4th gear
6	088 311 573	reverse lever		1
		G >> YR 20 02 9
(6)	016 311 573 B	reverse lever		1
		G YR 21 02 9 >>
7	088 311 575 A	selector shaft		1
		reverse gear
		G >> YR 20 02 9
(7)	088 311 575 E	selector shaft		1
		reverse gear
		G YR 21 02 9 >>
8	084 311 589 B	pan-head Schraube		1
		M 10 X 32
9	N 012 230 6	spring washer		1
10	N 011 912 1	lid		1
11	019 301 115	stopper		1
12	088 311 645 C	spring		1
13	* 088 311 599	sealing ring		2
14	084 311 621 D	bush		3
15	014 311 629	detent		2
16	014 311 635	intermediate piece		1
17	014 311 641 A	compression spring		3
18	088 311 689 B	threaded bush		1

Pos	__Part_Number__	Description	Remark	Qty.	Model
18A	088 311 707	cap		1
19	900 123 140 30	sealing ring		1
20	088 311 721	stop Schraube		2
21	088 311 723	washer		1
22	N 012 416 1	circlip		1
		16 X 1
