Porsche 924 Differential Teile

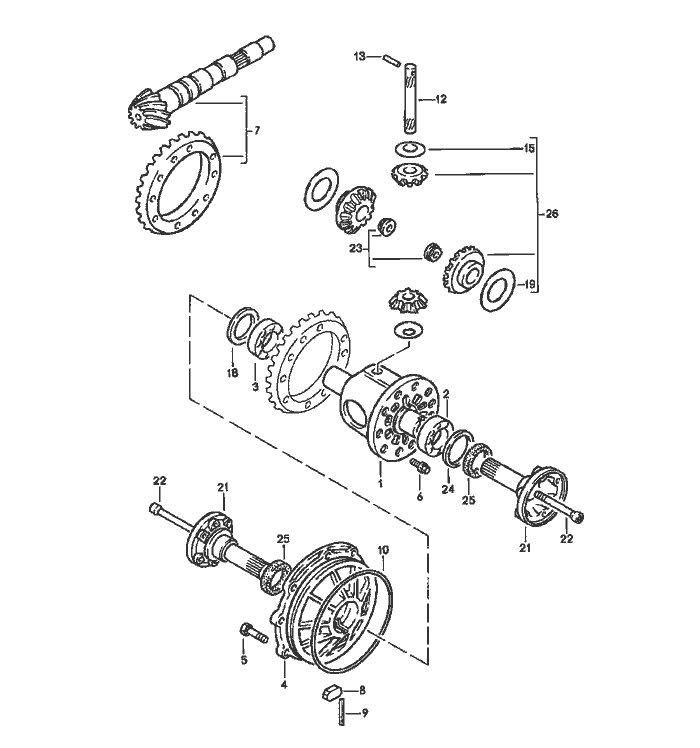

Differential


Pos__Part_Number__DescriptionRemarkQty.Model
  differential     924
  4-speed
1 088 409 121 Bdifferential housing   1
2 016 409 123taper roller bearing Left 1
3 113 517 185 Ctaper roller bearing Right 1
4 088 409 131 Clid   1
5 N 090 191 1hexagon-head bolt   9
  M 8 X 35
6 088 409 135 Ahexagon-head bolt   10
  M 10 X 18
7 088 409 143 Tring gear and pinion shaft   1 YR
  9:31
(7) 088 409 143 Qring gear and pinion shaft   1 XT
  9:35
8 084 301 143 Amagnet   1
9 N 013 344 2tensioning sleeve   1
10 * 113 301 185 Asealing ring   1
12 005 409 177bolt   1
13 N 013 291 1tensioning sleeve   1
15 * 016 409 170thrust washer   2
18 113 517 201 Ashim Right 1
  0,15
(18) 113 517 202 Ashim Right X
  0,20
(18) 113 517 203 Ashim Right X
  0,30
(18) 113 517 204 Ashim Right X
  0,40
(18) 113 517 205 Ashim Right X
  0,50
(18) 113 517 206 Ashim Right X
  0,60

Pos__Part_Number__DescriptionRemarkQty.Model
(18) 02A 409 210 Ashim Right X
  0,70
(18) 02A 409 210 Cshim Right X
  0,80
(18) 02A 409 210 Eshim Right X
  0,90
(18) 02A 409 210 Gshim Right X
  1,00
(18) 113 517 211 Ashim Right X
  1,20
19 * 011 519 215thrust washer   2
  0,50 MM
(19) 088 409 249thrust washer   X
  0,60 MM
(19) 088 409 249 Athrust washer   X
  0,70 MM
(19) 088 409 249 Bthrust washer   X
  0,80 MM
21 088 409 355 Cflanged shaft   2
22 088 409 359Schraube   2
23 016 409 161nut   2
24 018 409 381shim Left 1
  0,15
(24) 018 409 383shim Left X
  0,20
(24) 018 409 385shim Left X
  0,25
(24) 018 409 387shim Left X
  0,50
(24) 018 409 389shim Left X
  0,80
(24) 018 409 391shim Left X
  1,00
(24) 018 409 393shim Left X
  1,50

Pos__Part_Number__DescriptionRemarkQty.Model
25 * 016 409 399 Bradial shaft seal  2
26 * 090 598 081repair kit  1
  for
  differential
