Porsche 924 Limited-slip Differential Teile

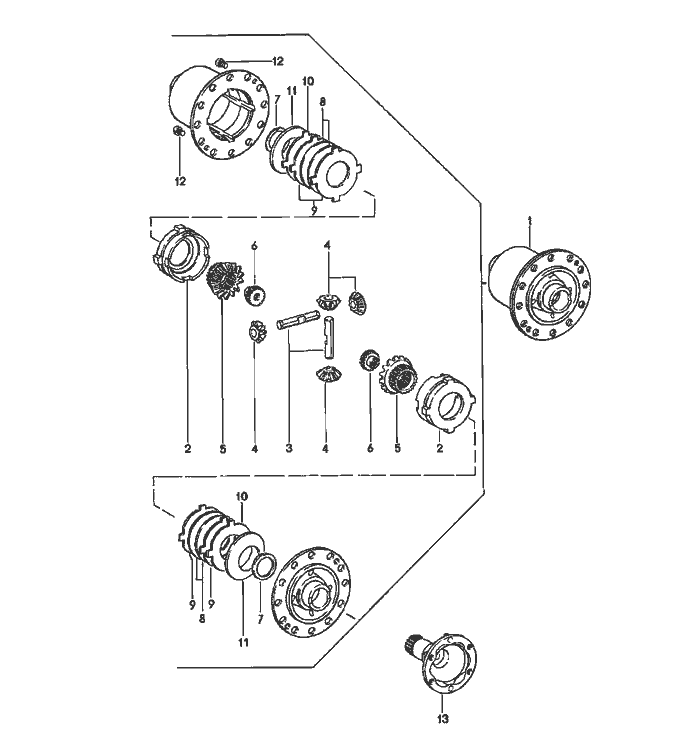

Limited Slip Differential


Pos__Part_Number__DescriptionRemarkQty.Model
  limited-slip differential   M 220
  5-speed
1 930 332 053 03limit.-slip different. 40%  1
2 901 332 511 11thrust ring  2
3 915 332 541 02differential shaft  2
4 915 332 531 02bevel pinion  4
5 930 332 535 01shaft bevel gear  2
6 928 332 279 01threaded disc  2
7 901 332 561 11thrust washer  2
8 917 332 551 10inner disc  4
  2,00 MM
9 917 332 552 10disc with external splines  4
  1,90 MM
9 917 332 552 11disc with external splines  X
  2,00 MM
9 917 332 552 12disc with external splines  X
  2,10 MM
10 930 332 553 00lamina  2
  1,40 MM
11 928 332 555 00cup spring  2
12 900 119 002 00pan-head Schraube  2
  M 6 X 10
13 477 332 209 Ajoint flange  2
