Porsche 924 Slide-valve Gearbox Teile

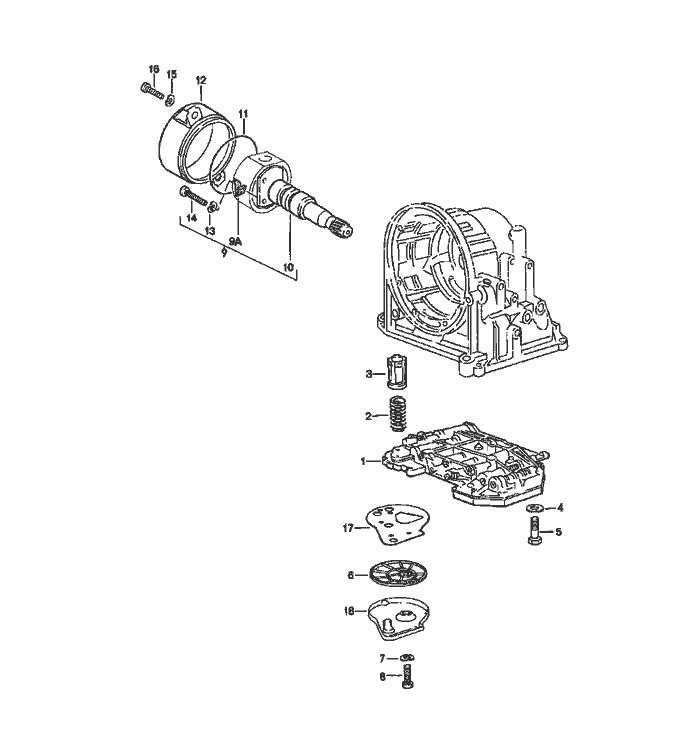

Slide Valve Gearbox


Pos__Part_Number__DescriptionRemarkQty.Model
  slide-valve gearbox
  oil strainer
  regulator
  automatic transmission
1 087 325 032 Jslide-valve gearbox 1 RL
2 003 325 417compression spring 1
3 003 325 405 Fpiston 1
4 N 012 226 5spring washer 11
5 N 010 346 5hexagon-head bolt 11
  M 6 X 30
6 010 325 421 Aoil strainer 1
7 N 012 222 4spring washer 2
8 900 014 004 02pan-head Schraube 2
  AM 5 X 15
9 087 325 041regulator 1
9A 010 325 329strainer 1
10 087 325 305governor shaft 1
11 * 011 519 345round seal 1
12 089 325 371lid 1
13 N 012 222 4spring washer 2
14 N 014 153 1oval-head Schraube 2
  M 5 X 40
15 N 012 228 3spring washer 2
16 N 010 240 16hexagon-head bolt 2
  8 X 20
17 010 325 443gasket 1
18 010 325 429 Alid 1
