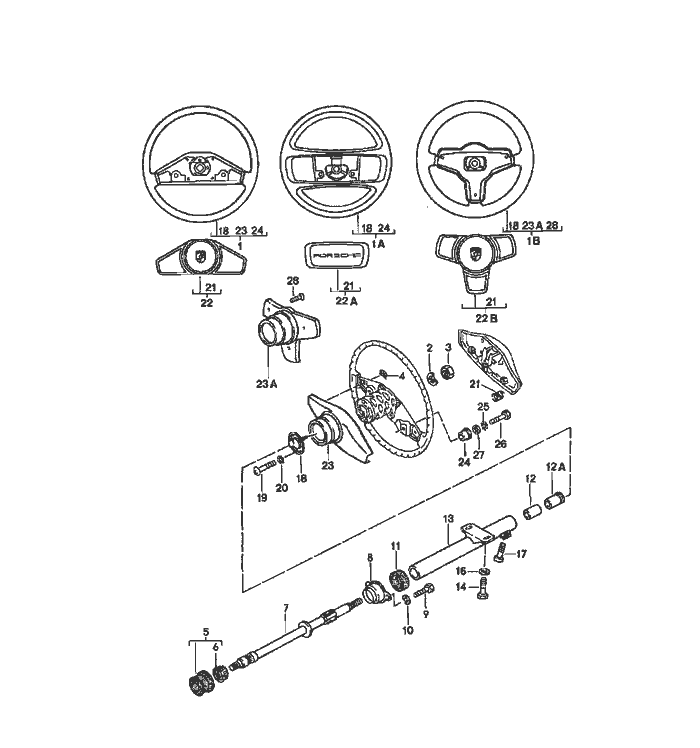

Porsche 924 Lenkung Rad Teile

Pos	__Part_Number__	Description	Remark	Qty.	Model
		steering wheel
		steering column
1	477 419 091 M	steering wheel		1	924
1A	477 419 091 G	sports steering wheel		1
		361 MM $
(1B)	477 419 091 L	sports steering wheel		1
		leather
		380 MM $
		with elevated hub
	1AJ	black
	3NG	brown
2	N 012 238 5	spring washer		1
3	900 078 006 01	hexagon nut		1
		M 16 X 1,5
4	113 857 113	clamping washer		2	924
		4 X 12
5	477 419 059	sealing ring		1
6	113 415 511	needle-roller bearing		1
7	477 419 505 J	steering column		1
8	411 417 605	support ring		1
9	999 072 005 09	hexagon-head bolt		2
		M 6 X 12
10	211 805 243	spring washer		2
11	411 417 613	rubber mounting		1
12	171 419 549	clamping sleeve		1
12A	171 419 341	support ring		1
13	477 419 563 B	steering column tube		1
14	411 417 549	shear bolt		2
16	111 129 720	washer		2
17	N 014 707 4	pan-head Schraube		1
		M 8 X 16

Pos	__Part_Number__	Description	Remark	Qty.	Model
18	113 415 660 A	slip ring		1
19	900 146 029 02	oval-head Schraube AM 3,5 X 10		3
20	N 012 131 2	shake-proof washer		3
21	171 419 697	spring		3
22	477 419 669	cap		1	924
22A	944 347 859 00	padded cap		1
	1DB	black
	4RB	brown
23	171 419 791 A	lining		1	924
24	321 419 779	insulating bush		3
(24)	321 419 779 A	insulating bush for sports steering wheel 361 MM $		3
25	900 114 014 01	shake-proof washer		3
26	N 010 261 3	hexagon-head bolt M 4 X 16		3
27	900 025 002 02	washer		2
28	900 146 029 02	oval-head Schraube B 3,5 X 13		3	TURBO
