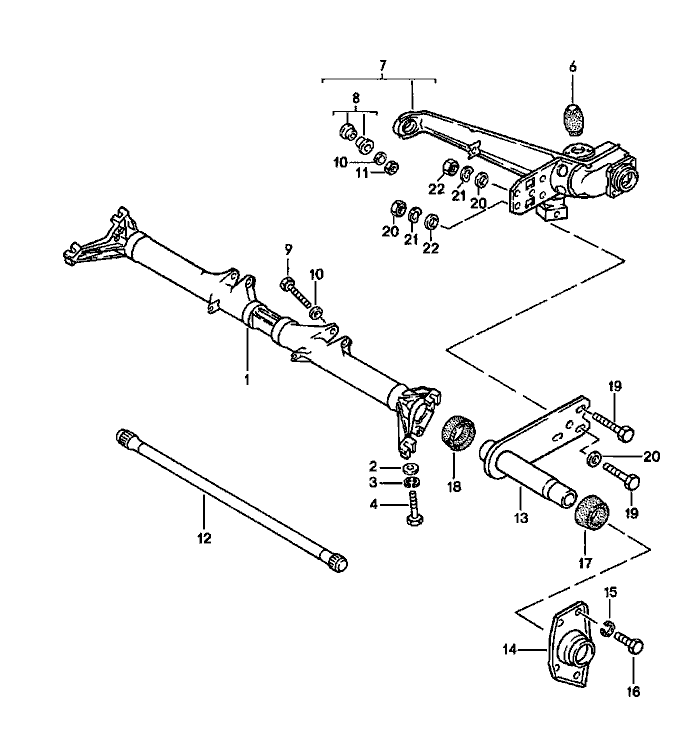

Porsche 924 Hinter Achse Carrier Teile

Pos	__Part_Number__	Description	Remark	Qty.	Model
		rear axle carrier			924
		rear axle link
		F >>92481 00776
		F >>92482 01225
		F >>92483 30098
1	477 500 053	rear axle carrier		1
2	477 405 423	washer		4
		A 13
3	N 012 042 4	lock ring		4
4	N 010 154 3	hexagon-head bolt		4
		M 12 X 55
6	311 501 191	rubber stop		2
7	477 501 035 D	rear axle link	Left	1
(7)	477 501 036 D	rear axle link	Right	1
8	477 501 541	silentbloc		4
9	N 010 190 4	hexagon-head bolt		2
		M 12 X 90
10	803 199 347	washer		4
11	N 022 141 4	lock nut		2
		M 12 X 1,5
12	311 511 115 D	torsion bar	Left	1
		22 $
(12)	311 511 116 D	torsion bar	Right	1
		22 $
13	113 511 205 B	spring brace	Left	1
(13)	113 511 206 B	spring brace	Right	1
14	113 511 227 B	lid		2
15	N 012 028 1	lock ring		8
16	N 010 254 6	hexagon-head bolt		8
		M 10 X 22
17	111 511 245 E	rubber mounting		2
		outer

Pos	__Part_Number__	Description	Remark	Qty.
18	311 511 245	rubber mounting inner	Right	1
(18)	311 511 246	rubber mounting inner	Left	1
19	N 010 138 1	hexagon-head bolt M 12 X 1,5 X 38		6
20	N 011 531 7	washer		12
21	211 513 537	spring washer		6
22	N 011 020 8	hexagon nut M 12 X 1,5		6
