Porsche 924 Stabiliser Teile

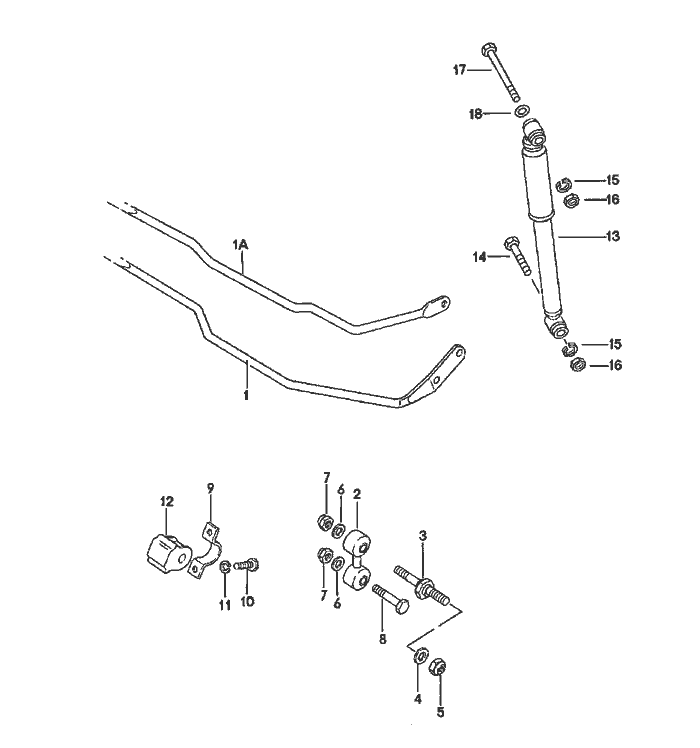

Pos	__Part_Number__	Description	Remark	Qty.	Model
		stabiliser
		vibration damper
1	477 511 409 B	stabiliser	1	924
		18 $
1A	477 511 411 A	stabiliser	1
		14 $
		F 92482 01226>>
		F 92483 30099>>
2	477 511 051 A	stabiliser mounting	2
3	477 511 515	camber eccentric	2
4	N 011 531 7	washer	2
5	N 022 141 4	lock nut	2
		M 12 X 1,5
6	900 025 008 09	washer	4
7	N 022 149 2	lock nut	4
8	N 010 452 4	hexagon-head bolt	2
		M 10 X 52
		mount
		cross tube
9	113 411 333	retaining bow	2
10	N 010 240 16	hexagon-head bolt	4
		M 8 X 20
11	900 027 015 02	lock ring	4
12	477 411 313 F	rubber mounting	2
		14 $
		vibration damper
13	477 513 031 B	vibration damper	2	924
		F >>92481 00776
		F >>92482 01225
		F >>92483 30098
(13)	477 513 031 C	vibration damper	2	924
		-fichtel + sachs -
		F 92481 00777>>
		F 92482 01226>>
		F 92483 30099>>

Pos	__Part_Number__	Description	Remark	Qty.	Model
(13)	477 513 031 E	vibration damper -koni -F 92481 00777>> F 92482 01226>> F 92483 30099>>		2	924
14	N 010 156 3	hexagon-head bolt M 12 X 1,5 X 70		2
15	N 012 042 4	lock ring		4
16	N 011 020 8	hexagon nut M 12 X 1,5		4
17	900 082 059 02	hexagon-head bolt M 12 X 1,5 X 115		2	924
(17)	900 082 044 02	hexagon-head bolt M 12 X 1,5 X 125 F 92481 00777>> F 92482 01226>> F 92483 30099>>		2
18	043 101 129	washer		2
