Porsche 924 Disc Rad Teile

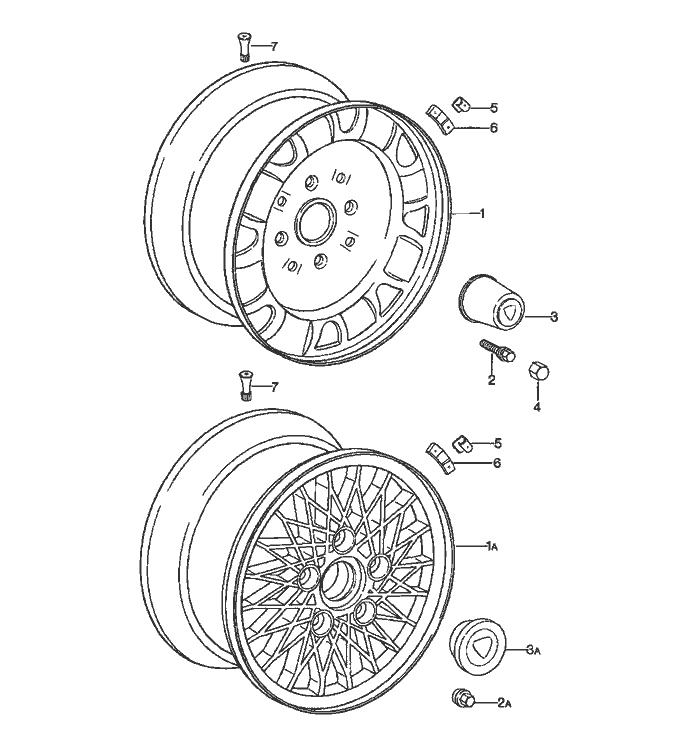

Pos	__Part_Number__	Description	Remark	Qty.	Model
		disc wheel
1	477 601 029 A	disc wheel		5	924
		5 1/2 J X 14 steel 4
		hole
(1)	477 601 031 B	disc wheel 6 J X 14		5	924
		light alloy 4hole
(1)	477 601 031 D	disc wheel 6 J X 14		5	924
		light alloy black 4
		hole
1A	477 601 025 B	cast spoked wheel 6 J X 15		5	924,M 471
		5
		hole
2	431 601 139	Schraube		16	924
		M 14 X 1,5 X 25,5 for
		477.601.029.A
(2)	477 601 139 B	wheel bolt M 14 X 1,5 X 25,5		16	924
-	477 601 041	lock for		1
		alloy wheels 477.601.031.B/D
2A	999 182 003 36	wheel nut		20	924,M 471
(2A)	N 020 112 1	ball seat nut for		20
		steel wheel
3	477 601 151 E	hub cap for		4	924
		steel wheel 4
		hole

Pos	__Part_Number__	Description	Remark	Qty.	Model
-	901 361 031 01	hub cap		4
		for
		steel wheel
		5
		hole
(3)	477 601 151 N	hub cap		4	924
		alloy wheel
3A	928 361 032 01	hub cap		4	924,M 471
4	321 601 173	cap		16
5	914 361 441 00	retainer spring		X
6	928 361 410 00	balance weight		X
		10 G
(6)	928 361 411 00	balance weight		X
		20 G
(6)	928 361 412 00	balance weight		X
		30 G
(6)	928 361 413 00	balance weight		X
		40 G
(6)	928 361 414 00	balance weight		X
		50 G
(6)	928 361 415 00	balance weight		X
		60 G
(6)	928 361 416 00	balance weight		X
		70 G
(6)	928 361 417 00	balance weight		X
		80 G
(6)	901 361 410 00	balance stick-on weight		X	924
		10 G
(6)	901 361 411 00	balance stick-on weight		X	924
		20 G
(6)	901 361 412 00	balance stick-on weight		X	924
		30 G
(6)	901 361 413 00	balance stick-on weight		X	924
		40 G
7	900 265 001 50	rubber valve		5
		15,2 MM $

Pos	__Part_Number__	Description	Remark	Qty.	Model
-	477 601 011	emergency wheel 5 1/2 J X 14 4hole with collapsible tire B 78-14 SST		1	924
-	477 601 015 A	emergency wheel 5 1/2 J X 15 5hole with collapsible tire 165/15		1	TURBO
-	911 361 510 02	small electric compressor		1
-	911 722 201 02	tyre pressure gauge		1
-	914 722 104 10	wing Schraube M 10 X 55		1
-	914 722 104 10	wing Schraube M 10 X 75		1
-	477 813 157	washer		1
-	477 813 191	support		1
-	N 010 251 2	hexagon-head bolt M 10 X 18		1
-	900 027 016 02	lock ring		1
