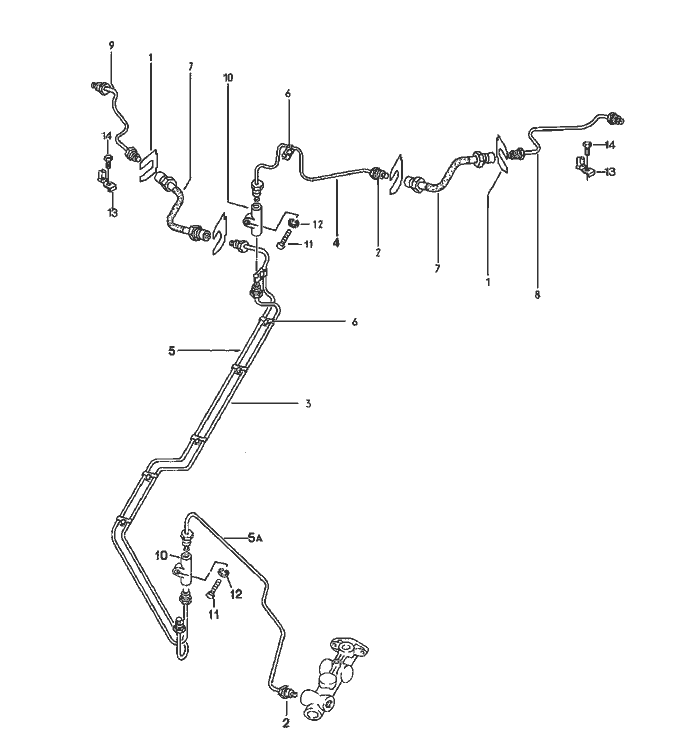

Porsche 924 Bremse Line F >>92482 01225 F >>92483 30098 Part...

Bremse Line F 92482 01225 F 92483 300
Pos Part NumberDescription  Remark Qty Model
  brake lines
  rear
1 113 611 715 Abrake hose bracket   4
3 477 611 741brake line F >>92482 01225 F >>92483 30098 Left 1
(3) 477 611 741 Abrake line F 92482 01126>> F 92483 30099>> F >>92482 11638 F >>92483 30450   1 924
(3) 477 611 741 Bbrake line F 92492 00051>> F 92493 30051>>   1
4 477 611 745brake line F >>92482 01225 F >>92483 30098 Left 1
(4) 477 611 745 Abrake line F 92482 01226>> F 92483 30099>> Left 1
5 477 611 746brake line F >>92482 01225 F >>92483 30098   1
(5) 477 611 746 Abrake line F 92482 01226>> F 92483 30099>> F >>92482 11638 F >>92483 30450   1 924
(5) 477 611 746 Bbrake line F 92492 00051>> F 92493 30051>>   1
5A 477 611 744 Abrake line F >>92482 11638 F >>92483 30450   1 924
(5A) 477 611 744 Bbrake line F 92492 00051>> F 92493 30051>>   1
6 477 611 767 Bcable clip   14
7 477 611 775brake hose   2

Pos__Part_Number__DescriptionRemarkQty.Model
8 477 611 781brake line F >>92482 01225 F >>92483 30098 Left 1 924
8 477 611 781brake line F 92482 01226>> F 92483 30099>> Left 1 924
8 477 611 781 Abrake line   1 924,M 471
9 477 611 782brake line F >>92482 01225 F >>92483 30098 Right 1 924
9 477 611 782brake line F 92482 01226>> F 92483 30099>> Right 1 924
9 477 611 782 Abrake line   1 924,M 471
10 113 611 791connecting piece   2
11 900 075 016 02hexagon-head bolt M 6 X 22   1
12 N 012 226 5spring washer   1
13 477 611 783support   2 924,M 471
14 N 010 210 13hexagon-head bolt M 6 X 10   2 924,M 471
