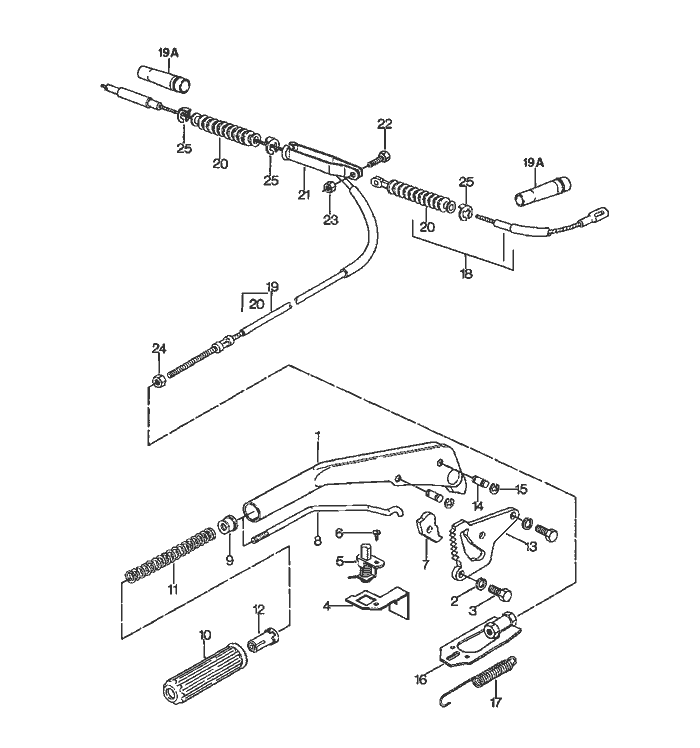

Porsche 924 Parking-brake Lever Teile
Pos
__Part_Number__
Description
Remark
Qty.
Model
parking-brake lever
1
477 711 305 B
parking-brake lever
1
924
(1)
477 711 305 A
parking-brake lever
1
924,M 471
2
900 027 015 02
lock ring
2
3
N 010 239 11
hexagon-head bolt
2
M 8 X 18
4
477 711 317
support
Left Hand Drive
1
5
968 613 601 00
contact switch
1
6
N 013 957 5
tapping Schraube
1
B 3,5 X 9,5
7
823 711 321
pawl
1
8
481 711 325
ratchet rod
1
9
481 711 327
spring sleeve
1
10
839 711 327
grip handle
1
01C
black
11
191 711 329
spring
1
01C
black
043
brown
12
113 711 333 B
push button
1
01C
black
043
brown
13
477 711 339 B
tooth sector
1
924
(13)
944 424 252 00
tooth sector
1
924,M 471
14
251 711 341 A
bearing pin
2
15
N 012 437 1
lock washer
4
16
477 711 973
turnbuckle
1
17
477 711 975
return spring
1
Pos
__Part_Number__
Description
Remark
Qty.
Model
18
477 609 719
parking-brake cable 995 MM
1
924
19
477 609 720
parking-brake cable 2035 MM
1
924
18
477 609 719 C
parking-brake cable 925 MM
1
924,M 471
19
477 609 720 C
parking-brake cable 1975 MM
1
924,M 471
19A
477 609 723
guide tube
1
924,M 471
-
N 020 906 3
tie-wrap 6,5 X 450
2
21
477 711 965
compensating bow
1
22
N 010 217 9
hexagon-head bolt M 6 X 20
1
23
900 910 012 02
lock nut
1
24
900 076 010 02
hexagon nut
1
25
N 012 328 1
lock
1
-
999 513 025 40
tie-wrap
2
