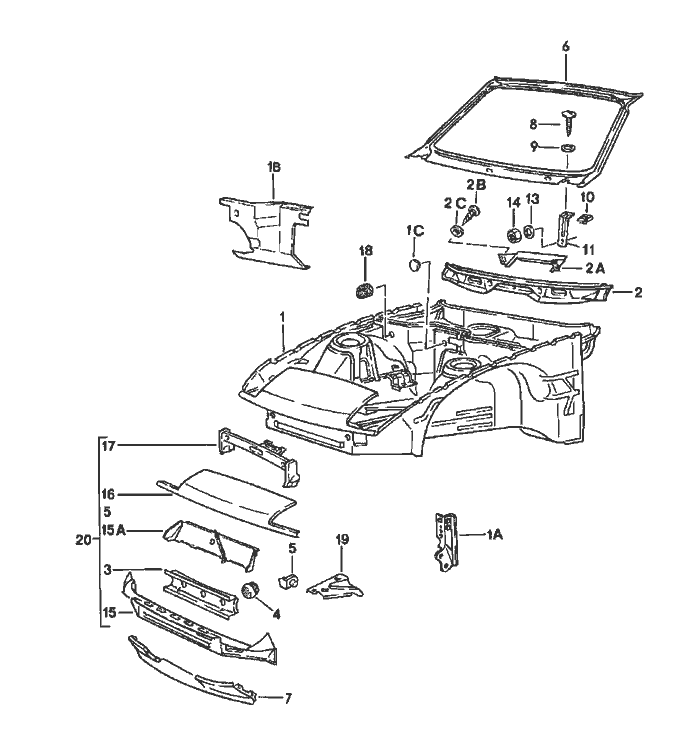

Porsche 924 Body Vorder Section Teile

Pos	__Part_Number__	Description	Remark	Qty.	Model
		body front section
1	477 805 021 AS	body front section	Left Hand Drive	1	924
		without
		carbon canister
		use also:
		stopper		2
		999 703 103 40
1A	477 805 057 A	reinforcement	Left	1
(1A)	477 805 058 A	reinforcement	Right	1
(1B)	944 502 021 01	firewall	Left	1
(1B)	944 502 202 00	firewall	Right	1
2	944 502 079 00	cross member	Left Hand Drive	1
3	477 805 477	cross member	Vorder	1
4	803 803 583	drain bush		3
5	477 805 567	bracket	Left	1
(5)	477 805 568	bracket	Right	1
6	477 805 571 A	windscreen frame		1
7	944 503 035 01	spoiler		1	924
8	900 143 046 07	tapping Schraube		2
		4,8 X 13
9	N 011 527 12	washer		2
		A 5,3
10	N 015 436 1	speed nut		2
		4,8 X 14,8
11	477 805 592	cowl panel support		2
-	N 010 215 13	hexagon-head bolt	-78	2	924
		M 6 X 12
13	N 011 666 7	washer	-78	4	924
		6,1
(13)	N 011 612 3	washer	79	2
		R 7
14	900 910 012 02	lock nut		2
		M 6

Pos	__Part_Number__	Description	Remark	Qty.	Model
15	944 503 043 00	end plate lower		1
15A	944 502 061 00	air duct		1
16	477 805 593	end plate upper when required order also: POS.5		1	924
17	944 501 933 01	lock carrier		1
18	477 805 667	water drain valve		2
19	477 805 699	corner plate	Left	1	M573
(19)	477 805 682	corner plate F >>92482 01225 F >>92483 30098	Right	1	924 (USA)(CDN) (J)
20	477 805 591	terminal piece complete		1	924
