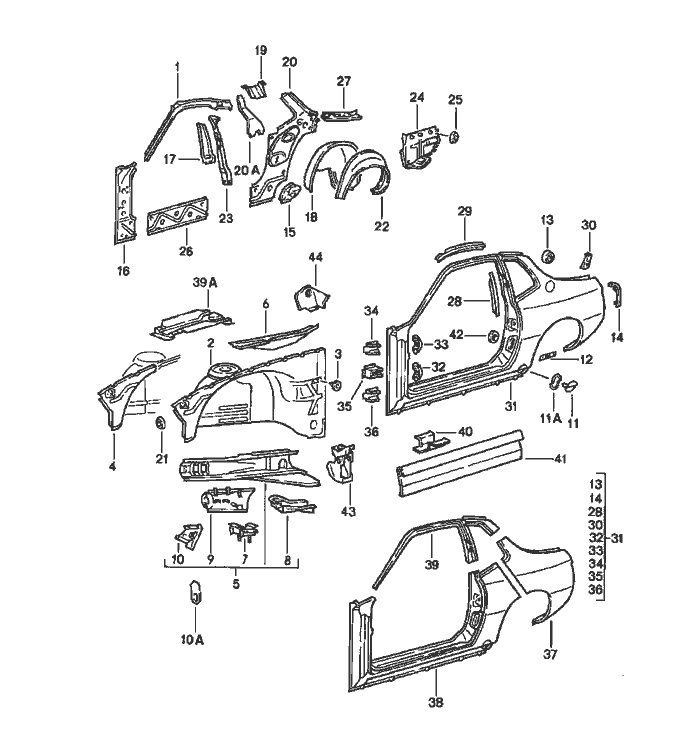

Porsche 924 Side Section Teile

Pos	__Part_Number__	Description	Remark	Qty.	Model
		side section
1	477 809 037	separator	Left	1
		inner
(1)	477 809 037	separator	Left	1	M650
(1)	477 809 038	separator	Right	1
(1)	A 477 809 038	separator	Right	1
-	311 881 945 A	stopper		3
2	477 809 103 D	wheel housing	Left	1
		without
		carbon canister
		use also:
		stopper		2
		999.703.103.40
(2)	477 809 104 D	wheel housing	Right	1
3	N 020 025 1	stopper		3	924
4	477 809 105	sub-part	Left	1
(4)	477 809 108 C	wheel housing	/R -78	1	924
(4)	477 809 108 C	wheel housing	/R 79	1
(5)	A 477 809 111 H	side member	/L -78	1	924
(5)	477 809 111 M	side member	/L -78	1	924
(5)	477 809 112 M	side member	/R -78	1	924
(5)	477 809 111 Q	side member	/L 79	1
(5)	477 809 112 Q	side member	/R 79	1
6	477 809 119	side member	Left Hand Drive \/ Left Side	1	924
		upper
(6)	477 809 120	side member	Left Hand Drive \/ Right Side	1
		upper
7	477 809 151	bearing bracket		2
8	477 809 165	bracket	Left	1	924
		F >>92482 05499
		F >>92483 30253

Pos	__Part_Number__	Description	Remark	Qty.	Model
8	477 809 165 A	bracket	/L -78	1
		F 92482 05500>>92482 11638
		F 92483 30254>>92483 30450
8	951 501 165 00	closing element	/L 79	1
(8)	477 809 166	bracket
		F >>92482 05499
		F >>92483 30253
(8)	477 809 166 A	bracket	/R -78	1
		F 92482 05500>>92482 11638
		F 92483 30254>>92483 30450
(8)	951 501 166 00	closing element	/R 79	1
(9)	944 501 081 00	filler plate	Left	1
(9)	944 501 082 00	filler plate	Right	1
10	477 809 221 A	separator	Left	1
(10)	477 809 268 B	separator	Right	1
-	477 809 525	towing lug	Left	1
10A	477 809 035	support	Right	1	(J)
		water reservoir
11	477 809 335	lid		2	924
		F >>92482 01225
		F >>92483 30098
(11A)	477 809 336	gasket		2	924
		F >>92482 01225
		F >>92483 30098
12	477 809 341	clamping spring		2	924
		F >>92482 01225
		F >>92483 30098
13	477 809 355	pot		1
		tank filler neck
14	A 477 809 375 A	bracket for light	Left	1
14	477 809 375 A	bracket for light	Left	1
(14)	477 809 376 A	bracket for light	Right	1
(14)	477 809 376 A	bracket for light	Right	1

Pos	__Part_Number__	Description	Remark	Qty.	Model
15	477 809 387	corner plate F >>92482 01225 F >>92483 30098	Left	1	924
15	477 809 387 A	corner plate F 92482 01226>> F 92483 30099>>	Left	1
(15)	477 809 388	corner plate F >>92482 01225 F >>92483 30098	Right	1	924
(15)	477 809 388 A	corner plate F 92482 01226>> F 92483 30099>>	Right	1
16	477 809 393 A	hinge pillar inner	Left	1
(16)	477 809 394 A	hinge pillar inner	Right	1
17	477 809 397	centre pillar inner	Left	1
(17)	477 809 398	centre pillar inner	Right	1
18	477 809 403	wheel housing inner F >>92482 01225 F >>92483 30098	Left	1	924
18	477 809 403 F	wheel housing inner F 92482 01226>>92482 11638 F 92483 30099>>92483 30450	Left	1	924
(18)	477 809 403 F	wheel housing inner	/L 79	1
(18)	477 809 404	wheel housing inner F >>92483 30098	Right	1	924 (J)
(18)	477 809 404 A	wheel housing inner F >>92482 01225	Right	1	924 (USA) (CDN)
(18)	477 809 404 H	wheel housing inner F 92482 01226>>92482 11638 F 92483 30099>>92483 30450	Right	1	924

Pos	__Part_Number__	Description	Remark	Qty.	Model
(18)	477 809 404 H	wheel housing	Right	1
		inner
-	477 809 852 A	bracket		1
		filler neck
		see workshop manual
19	477 809 205	mounting	-78	1	924
		fuel pump
20	944 502 901 00	side section	/L -78	1	924
		inner
(20)	944 502 902 00	side section	/R -78	1	924
20	944 502 901 00	side section	/L 79	1
(20)	944 502 902 00	side section	/R 79	1
20A	477 809 427	closing element	Left	1	(USA),(CDN)
(20A)	477 809 428	closing element	Right	1	(USA),(CDN)
21	803 803 583 A	lid		6
22	477 809 411 B	wheel housing	/L -78	1	924
		outer
(22)	477 809 412	wheel housing	/R -78	1	924
22	477 809 411 B	wheel housing	/L 79	1
(22)	477 809 412 B	wheel housing	/R 79	1
23	477 809 415	reinforcement	Left	1
(23)	477 809 416	reinforcement	Right	1
24	477 809 421 A	side section	Left	1
		inner
(24)	477 809 422 A	side section	Right	1
		inner
25	803 803 583 A	lid		8
26	477 809 433	separator		2
27	944 502 439 00	reinforcement		1
(27)	477 809 440	reinforcement		1
28	477 809 445	reinforcement	Left	1

Pos	__Part_Number__	Description	Remark	Qty.	Model
(28)	477 809 446	reinforcement	Right	1
29	477 809 585	filler plate	Left	1
		roof frame
		inner
(29)	477 809 586	filler plate	Right	1
		roof frame
		inner
30	477 809 617	retaining bracket	Left	1
(30)	477 809 618	retaining bracket	Right	1
(31)	477 809 601 AA	side section	Left	1	924 (J)
		see workshop manual
(31)	477 809 601 AB	side section	Left	1	(USA)(CDN)
		see workshop manual
(31)	477 809 602 BE	side section	Right	1	924 (J)
		see workshop manual
(31)	477 809 602 A	side section	Right	1	(USA)(CDN)
		F >>92482 01225
(31)	477 809 602 BH	side section	Right	1	(USA)(CDN)
		F 92482 01226>>
32	477 809 619	mounting plate		1
(32)	477 809 620	mounting plate		1
33	477 809 653	mounting plate		2
34	477 809 655	hinge reinforcement		2
		upper
35	477 809 625	reinforcement		2
36	477 809 621	hinge reinforcement	Left	1
		lower
(36)	477 809 622	hinge reinforcement	Right	1
		lower
37	477 809 843	sub-part	/L -78	1	(J)
(37)	477 809 843 B	sub-part	/L 79	1	(J)
(37)	477 809 843 G	sub-part	Left	1	(USA)(CDN)
(37)	477 809 844 F	sub-part	/R -78	1	(J)

Pos	__Part_Number__	Description	Remark	Qty.	Model
(37)	477 809 844 B	sub-part	/R 79	1	(J)
(37)	477 809 844 A	sub-part	/R -78	1	(USA)(CDN)
(37)	477 809 844 G	sub-part	/R 79	1	(USA)(CDN)
(38)	477 809 847 B	side member section see workshop manual POS. 41	Left	1
(38)	477 809 848 B	side member section see workshop manual	Right	1
39	477 809 849 A	sub-part roof pillar	Left	1
(39)	477 809 850 A	sub-part roof pillar	Right	1
(39A)	477 809 865 A	bracket	-78	1
39A	477 809 867 B	bracket	79	1
-	477 809 595	support control unit	79	1
42	999 025 074 02	washer see workshop manual		2
