Porsche 924 Bumper Teile

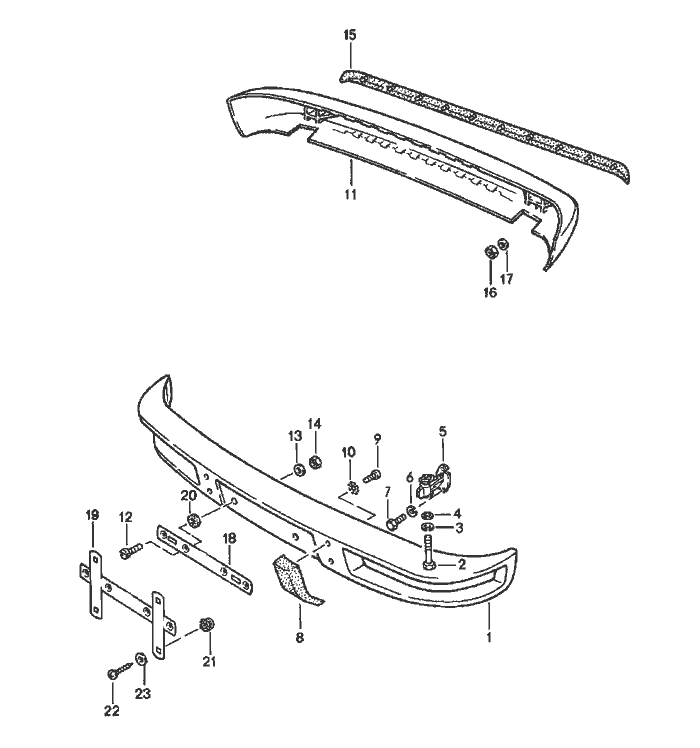

Pos	__Part_Number__	Description	Remark	Qty.	Model
		bumper
		without
		impact absorber
1	477 807 113	bumper	Vorder	1
(1)	477 807 113 B	bumper	Vorder	1	M 288
		use also:
		-78
		jet carrier		2
		477.955.177
		nut		2
		N 019121.1
2	900 074 064 02	hexagon-head bolt		4
		M 10 X 60
3	900 027 016 02	lock ring		4
		B 10
4	900 025 008 09	washer		4
		A 10,5
5	477 807 131 A	bumper reinforcement		4
6	N 012 009 3	lock ring		8
		A 8
7	900 075 087 02	hexagon-head bolt		8
		M 8 X 16
8	477 807 193	bumper horn	Left	1
		for bumper
(8)	477 807 194	bumper horn	Right	1
		for bumper
9	900 067 011 02	pan-head Schraube		4
		M 6 X 20
10	N 012 105 3	serrated lock washer		4
		A 6,4
11	477 807 313	bumper	Hinter	1
12	N 100 457 01	countersunk-head Schraube		2
		M 5 X 25
13	900 151 027 02	washer		2
		A 5,3
14	900 910 009 02	lock nut		2
		M 5

Pos	__Part_Number__	Description	Remark	Qty.	Model
15	477 807 319	protective moulding	Hinter	1
16	113 101 175	hexagon nut M 6		10
17	N 011 524 7	washer A 6,4		10
18	911 701 121 03	support number plate		1
-	N 015 430 1	speed nut number plate mount		2
19	928 701 050 03	support		1	(J)
20	914 571 903 10	sealing ring		4
21	999 591 498 40	special nut		X
22	900 143 134 00	tapping Schraube BZ 4,2 X 9,5		X
23	N 011 522 8	washer 4,3		X
