Porsche 924 Lid Teile

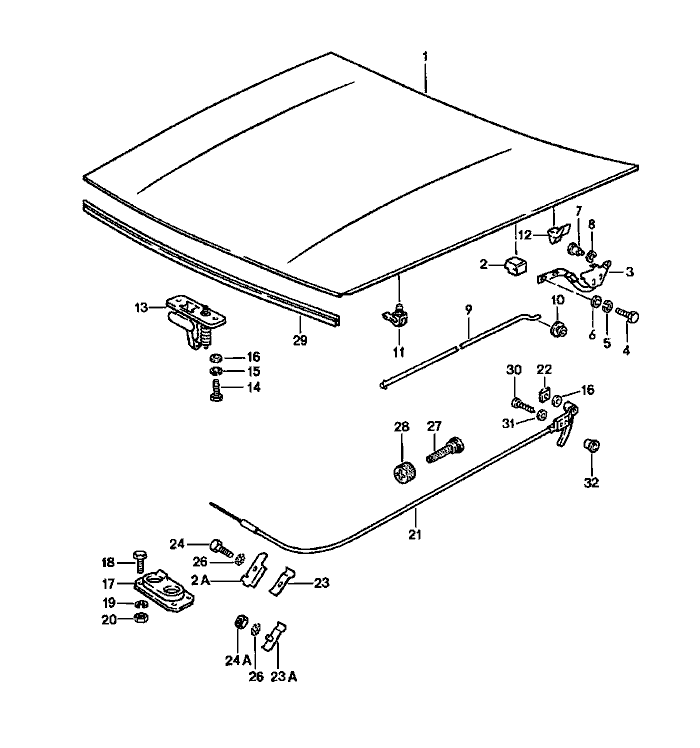

Pos	__Part_Number__	Description	Remark	Qty.	Model
		lid
		front
		actuator
		lid lock
1	944 511 005 01	lid		1	924
2	477 823 185	filler piece		1
2A	477 823 207	reinforcement bracket		1	924
		F >>92482 08410
		F >>92483 30332
3	944 511 301 00	hinge	Left	1
(3)	944 511 302 00	hinge	Right	1
4	N 010 240 16	hexagon-head bolt		8
		M 8 X 20
5	900 027 015 02	lock ring		8
		B 8
6	N 011 525 13	washer		8
		A 8,4
7	477 823 307	bearing pin		2
8	N 012 230 6	spring washer		2
		B 10
9	477 823 363 A	hood stay		1
10	171 823 395	rubber mounting		1
(11)	431 823 397	support		1
12	477 823 493	guide piece		4
13	477 823 507	lock upper part		1
		lid lock
14	999 072 005 09	hexagon-head bolt		2
		M 6 X 12
16	999 025 049 02	washer		2
17	928 511 027 02	lid lock		1
		lower part
18	900 075 116 02	hexagon-head bolt		4
		M 4 X 8

Pos	__Part_Number__	Description	Remark	Qty.	Model
19	N 012 004 2	lock ring		4
		B 4
20	N 011 004 6	hexagon nut		4
		M 4
21	477 823 531 A	lid lock cable		1
22	N 012 855 1	clamping washer		1
23A	477 823 551	clamping piece		1
24	999 072 005 09	hexagon-head bolt		2	924
		M 6 X 12
		F >>92482 08410
		F >>92483 30332
24A	900 076 010 02	hexagon nut		1
		M 6
25	N 012 106 1	lock washer		1
		J 6,4
26	N 012 006 4	lock ring		1
		A 6
27	477 823 591	grommet		1
28	477 823 593	stopper		1
29	928 511 141 04	gasket		1
30	N 013 941 3	tapping Schraube		2	924
		4,8 X 32
		F >>92482 08674
		F >>92483 30349
30	N 013 952 1	tapping Schraube		2
		4,8 X 50
31	900 025 003 02	washer		2
		A 5,3
32	477 823 165	bush		2
		F 92482 08675>>
		F 92483 30350>>
