Porsche 924 Installation Teile Teile

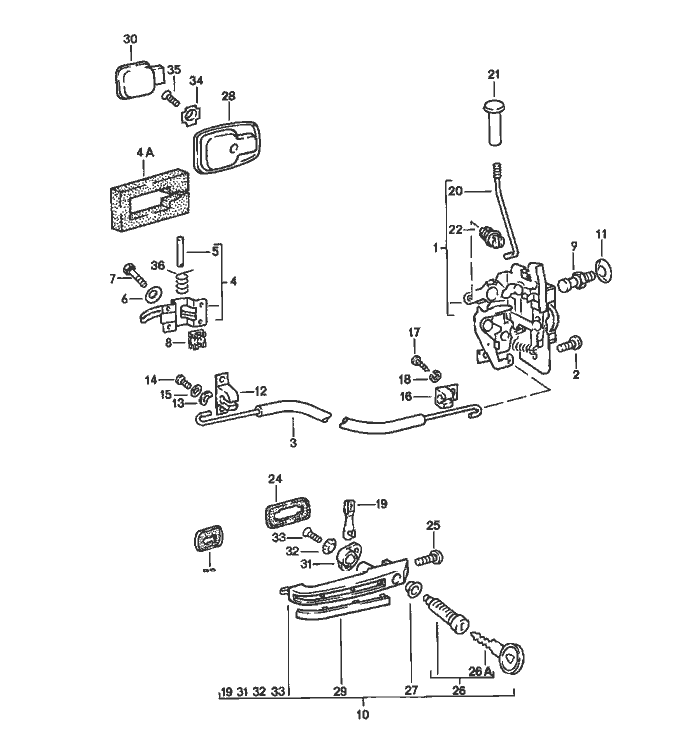

Pos	__Part_Number__	Description	Remark	Qty.	Model
		installation parts
		door
		door lock
1	477 837 015 A	door lock	/LL /L	1	(J)
(1)	477 837 015 A	door lock	/LL /L	1	M 190
(1)	477 837 016 A	door lock	/LL /R	1	(J)
(1)	477 837 016 A	door lock	/LL /R	1	M 190
2	N 014 139 5	oval-head Schraube		8
		M 6 X 10
-	111 837 941	cup spring		8
3	477 837 017	bowden cable		2
4	171 837 019	inner door release	Left	1
	041	black
	90V	brown
(4)	171 837 020	inner door release	Right	1
	041	black
	90V	brown
4A	477 831 304 A	seal		2
5	N 013 666 1	rivet		2
		B 4 X 32
6	111 837 941	cup spring		8
		6,4 X 12,5
7	N 010 210 13	hexagon-head bolt		8
		M 6 X 10
8	477 837 521	captive nut		8
		M 6
9	823 837 035 A	lock pin		2
10	477 837 037	door handle		2
		chrome
		with lock cylinder
		F >>92482 00356
		F >>92483 30068

Pos	__Part_Number__	Description	Remark	Qty.	Model
10	477 837 037 B	door handle		2
		black
		with lock cylinder
		F 92482 00357>>
		F 92483 30069>>
11	823 837 057 A	spring washer		2
		12 X 32
12	477 837 115 A	support		2
13	N 011 524 7	washer		4
		B 6
14	N 014 139 7	oval-head Schraube		4
		M 6 X 12
15	N 011 524 7	washer		4
		A 6,4
16	477 837 117	support		2
17	N 013 957 5	tapping Schraube		2
		BZ 3,5 X 9,5
18	N 012 004 2	lock ring		2
		B 4
19	823 837 137	connecting piece		2
20	477 837 183	locking rod		2
21	111 837 187 B	knob		2
	043	black
22	171 837 199 A	clip		2
23	171 837 209 A	desk pad		2
24	171 837 211 A	desk pad		2
25	803 837 951	self-lock. fillister Schraube		2
(26)	944 538 903 00	lock cylinder		2
		with keys
		w/o stipulated lock number
26	944 538 903 01	lock cylinder		2
		with stipulated lock number

Pos	__Part_Number__	Description	Remark	Qty.	Model
-	-	grease
		for lock cylinder
		see group
		0/05/00
26A	477 837 219	blank key		2
26A	944 538 933 00	key		1
		with stipulated lock number
		Information available
27	111 837 227 B	sealing ring		2
		lock cylinder
28	111 837 239 B	rosette	-78	2	924
	01C	black
28	171 837 235	rosette	79	2
	01C	black
	90V	brown
29	823 837 239	cover		2
30	311 837 247	finger plate		2
	043	black
	90V	brown
31	477 837 511	driver		2
32	N 012 116 1	serrated lock washer		2
		V 4,3
33	N 011 734 1	countersunk-head Schraube		2
		AM 4 X 8
33	N 033 165 1	countersunk-head Schraube		2
		AM 4 X 8
34	111 837 291	cone washer		2
35	N 014 216 1	countersunk-head Schraube		2
		AM 5 X 10
36	811 837 723	spring		2
		for operating lever
