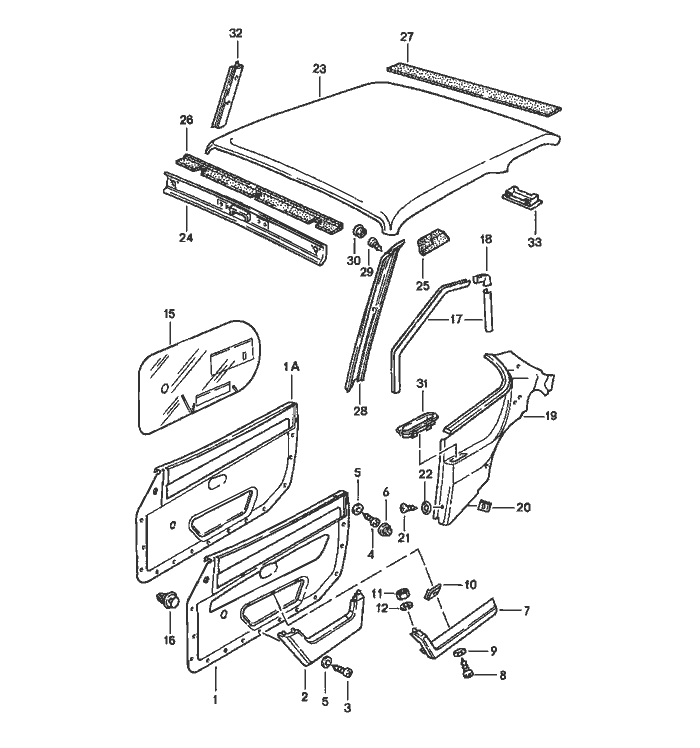

Porsche 924 Linings Teile

Pos	__Part_Number__	Description	Remark	Qty.
		linings
(1)	477 867 011 F	door trim panel power windows manually adjustable leatherette	Left	1
	CD4	black/anthracite	76-77
	CG8	gazelle/saddle tan	76-77
	CJ6	black	77
	DF9	black F >>92481 02502 F >>92482 04108 F >>92483 30204
	DG1	brown F >>92481 02502 F >>92482 04108 F >>92483 30204
	DG2	beige/brown F >>92481 02502 F >>92482 04108 F >>92483 30204
1	477 867 012 F	door trim panel power windows manually adjustable leatherette	Right	1
	CD4	black/anthracite	76-77
	CG8	gazelle/saddle tan	76-77
	CJ6	black	77
	DF9	black F >>92481 02502 F >>92482 04108 F >>92483 30204
	DG1	brown F >>92481 02502 F >>92482 04108 F >>92483 30204
	DG2	beige/brown F >>92481 02502 F >>92482 04108 F >>92483 30204

Pos	__Part_Number__	Description	Remark	Qty.
(1A)	477 867 011	door trim panel power windows manually adjustable leatherette	Left	1
	DF9	black
		F 92481 02503>>
		F 92482 04109>> F 92483 30205>>
	DG1	brown
		F 92481 02503>> F 92482 04109>>
		F 92483 30205>>
	DG2	beige/brown F 92481 02503>>
		F 92482 04109>> F 92483 30205>>
1A	477 867 012	door trim panel power windows manually adjustable leatherette	Right	1
	DF9	black
		F 92481 02503>>
		F 92482 04109>> F 92483 30205>>
	DG1	brown F 92481 02503>>
		F 92482 04109>>
		F 92483 30205>>
	DG2	beige/brown F 92481 02503>>
		F 92482 04109>> F 92483 30205>>
(1A)	477 867 011	door trim panel leatherette/ cloth	Left	1
		FISCHGRAET
	EH4	black/ black-white	79-
	EH5	black/	79
		orange
	EH6	brown/ brown-beige	79

Pos	__Part_Number__	Description	Remark	Qty.	Model
1A	477 867 012	door trim panel leatherette/ cloth FISCHGRAET	Right	1
	EH4	black/ black-white	79-
	EH5	black/ orange	79-
	EH6	brown/ brown-beige	79-
(1A)	477 867 011	door trim panel	Left	1
1A	477 867 012	door trim panel	Right	1
(1A)	477 867 011	door trim panel leatherette/ tartan cloth	Left	1
	EN4	black/ red-blue	79		(USA)
1A	477 867 012	door trim panel leatherette/ tartan cloth	Right	1
	EN4	black/ red-blue	79		(USA)
(1A)	477 867 011 B	door trim panel power windows electrically adjustable leatherette	Left Hand Drive \/ Left Side	1
	DF9	black	78-
	DG1	brown	78-
	DG2	beige/brown	78-
(1A)	477 867 012 B	door trim panel power windows electrically adjustable leatherette	Left Hand Drive \/ Right Side	1
	DF9	black	78-
	DG1	brown	78-
	DG2	beige/brown	78

Pos	__Part_Number__	Description	Remark	Qty.
(1A)	477 867 011 B	door trim panel leatherette/ cloth FISCHGRAET	Left Hand Drive \/ Left Side	1
	EH4	black/ black-white	79-
	EH5	black/ orange	79-
	EH6	brown/ brown/beige	79-
(1A)	477 867 012 B	door trim panel leatherette/ cloth FISCHGRAET	Left Hand Drive \/ Right Side	1
	EH4	black/ black-white	79-
	EH5	black/ orange	79-
	EH6	brown/ brown/beige	79
-	999 507 071 00	speed nut		2
(2)	477 867 133	package box	Left	1
	90V	saddle tan	76-77
	01C	black	76
	89S	cadbury brown	78
2	477 867 134	package box	Right	1
	90V	saddle tan	76-77
	01C	black	76
	89S	cadbury brown	78
3	N 013 962 2	tapping Schraube B 3,9 X 16		6
4	311 867 167	tapping Schraube 4,2		4

Pos	__Part_Number__	Description	Remark	Qty.
5	900 151 028 02	washer 4,3		10
6	311 867 169	cap		4
	01C	black	76
	90V	brown	76-
(7)	477 867 171	armrest	Left	1
	041	black	76
	90V	saddle tan	76-77
	89S	brown	78
7	477 867 172	armrest	Right	1
	041	black	76
	90V	saddle tan	76-77
	89S	brown	78
8	900 143 046 02	tapping Schraube B 4,8 X 16		6
9	N 012 225 2	spring washer B 5		6
10	999 591 722 02	speed nut B 4,8 X 19,8		6
11	900 076 010 02	hexagon nut M 6		2
12	N 012 026 1	lock ring 6		2
(15)	477 867 177 D	sealing film	Left	1
15	477 867 178 D	sealing film door trim panel	Right	1
16	823 867 299	clip		25
17	477 867 367	piping door		4
18	477 867 371	corner piece		2

Pos	__Part_Number__	Description	Remark	Qty.	Model
(19)	477 867 421	lining side section	Left	1
	91V	saddle tan	76-77
	05T	black	76
	21S	brown	78
19	477 867 422	lining side section	Right	1
	91V	saddle tan	76-77
	05T	black	76
	21S	brown	78
-	111 857 785	stopper		2
-	111 857 795	cover disc		2
20	N 015 438 1	speed nut B 3,5 X 16,5		2
21	N 014 087 5	rais. counters. h. tap. s. B 3,5 X 16		4
22	N 011 578 1	cone washer 3,7		4
23	477 867 503	rooflining		1
	041	black	76-77
	90V	saddle tan	76-77
	05T	black	78
	21S	brown	78-
(23)	477 867 501 A	rooflining		1	M 650
	041	black	76-77
	90V	saddle tan	76-77
	05T	black	78
	21S	brown	78
-	477 867 543	roof strut		3

Pos	__Part_Number__	Description	Remark	Qty.	Model
24	477 867 511	lining roof frame		1
	041	black	76-77
	90V	saddle tan	76-77
	05T	black	78
	21S	brown	78-
(24)	477 867 513	lining roof frame	Left	1	(USA)(CDN)
	041	black	76-77
	90V	saddle tan	76-77
	05T	black	78
	21S	brown	78-
(24)	477 867 514	lining roof frame	Right	1	(USA)(CDN)
	041	black	76-77
	90V	saddle tan	76-77
	05T	black	78
	21S	brown	78
25	944 555 115 00	roof frame padding	Left	1
(25)	944 555 116 00	roof frame padding	Right	1
26	477 867 531	roof frame padding centre	Vorder	1	M 650
27	477 867 533	roof frame padding	Hinter	1	M 650
28	477 867 553	lining windscreen frame	Left	1	924
	041	black	76-77
	90V	saddle tan	76-77
	05T	black	78
	21S	brown	78

Pos	__Part_Number__	Description	Remark	Qty.	Model
(28)	477 867 554	lining F >>92481 00829 F >>92482 01329 F >>92483 30100 windscreen frame	Right	1	924
	041	black	76-77
	90V	saddle tan	76-77
	05T	black	78
	21S	brown	78
28	477 867 553 A	lining windscreen frame	Left	1
	05T	black	78
	21S	brown	78
	041	black	76-77
	90V	saddle tan	76-77
(28)	477 867 554 A	lining F 92481 00830>> F 92482 01330>> F 92483 30101>> windscreen frame	Right	1
	05T	black	78
	21S	brown	78
	041	black	76-77
	90V	saddle tan	76-77
29	N 013 962 2	tapping Schraube B 3,9 X 16		6
30	914 552 233 10	filler piece		6
	01C	black	76
	90V	brown	76
31	477 867 653	rosette		2
32	477 867 655	lining centre pillar	Left	1

Pos	__Part_Number__	Description	Remark	Qty.
	041	black	76-77
	90V	saddle tan	76-77
	05T	black	78
	21S	brown	78-
(32)	477 867 656	lining centre pillar	Right	1
	041	black	76-77
	90V	saddle tan	76-77
	05T	black	78
	21S	brown	78
33	477 867 923	cap F >>92471 06849 F >>92472 33559 F >>92473 30159		2
	01C	black	76-77
	90V	saddle tan	76-77
33	477 867 923 A	cap		2
	01C	black	76
	90V	saddle tan	76-77
	89S	brown	78
