Porsche 924 Door Mirror Teile

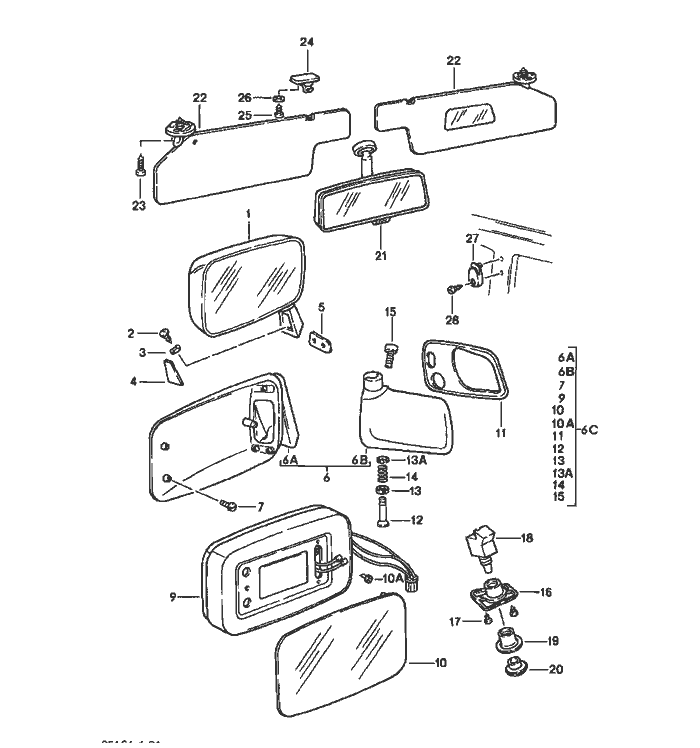

Door Mirror


Pos__Part_Number__DescriptionRemarkQty.Model
  door mirror
  interior mirror
  sun visor
1 477 857 501 Bdoor mirror Left1
  plane
(1) 477 857 502 Bdoor mirror Right1
  plane
(1) 477 857 501 Adoor mirror Left1 (J)
  convex
(1) 477 857 502 Adoor mirror Right1 (J)
  convex
2 N 014 132 4oval-head Schraube  2
  M 5 X 18
3 N 012 225 2spring washer  2
  B 5
4 861 857 519cover LeftX
(4) 861 857 519 Acover LeftX
  with bearing bracket
(4) 862 857 520cover RightX
(4) 862 857 520 Acover RightX
  with bearing bracket
5 477 857 543desk pad  1
  door mirror
  electrically adjustable
  F 92482 04109>>
  F 92483 30205>>
6 928 731 023 04mirror housing Left Hand Drive \/ Left Side1
(6) 928 731 024 04mirror housing Left Hand Drive \/ Right Side1
6A 911 731 043 00mirror housing Left1
(6A) 911 731 044 00mirror housing Right1
6B 944 731 141 00mirror base Left Hand Drive \/ Left Side1
(6B) 944 731 142 00mirror base Left Hand Drive \/ Right Side1
6C 477 898 027door mirror Left Hand Drive \/ Left Side1 (USA),(CDN)
  plane

Pos__Part_Number__DescriptionRemarkQty.Model
(6C) 477 898 028door mirror Left Hand Drive \/ Right Side1 (USA),(CDN)
  plane
(6C) 477 898 029door mirror Left Hand Drive \/ Left Side1 (J)
  convex
(6C) 477 898 030door mirror Left Hand Drive \/ Right Side1 (J)
  convex
7 999 143 003 02hexagon-head bolt  3
  M 5 X 10
9 911 731 027 06covering frame  1
10 911 731 035 00mirror glass  1 (USA),(CDN)
  plane
(10) 911 731 035 01mirror glass  1 (J)
  convex
10A 999 703 128 40grommet  3
11 944 731 505 00desk pad Left Hand Drive \/ Left Side1
(11) 944 731 508 00desk pad Left Hand Drive \/ Right Side1
12 911 731 257 02guide tube  1
13 911 731 345 02centring washer  1
13A 911 731 347 00centring washer  1
14 911 731 029 01compression spring  1
15 900 186 042 02pan-head Schraube  1
  M 5 X 40
16 477 867 181mounting piece  1
17 N 014 090 5tapping Schraube  2
  3,9 X 13
18 911 613 115 00switch  1
19 928 555 463 02threaded bush  1
20 928 613 462 00knob  1
  electrical components
  door mirror  1

Pos__Part_Number__DescriptionRemarkQty.Model
-477 971 111wiring harness door mirror driver's door  1
-477 971 115 Awiring harness door mirror Left Hand Drive1
  dashboard
-477 971 910bellows  1
  see group 8/04/00
  electrical components door mirror  2
-477 971 115wiring harness door mirror Left Hand Drive1
  dashboard
-477 971 113wiring harness door mirror  1
  passenger's door
-477 955 703rocker switch passenger's side Left Hand Drive1
-803 971 979plug socket  X
-477 971 910bellows  2
  see group 8/04/00
-477 898 025installation set adjustable and heatable door mirror plane Left Hand Drive \/ Left Side1
  see group 8/98/00
-477 898 026installation set adjustable and heatable door mirror Left Hand Drive \/ Right Side1
  plane
  see group 8/98/00
21 477 857 511interior mirror  1
  inner
22 477 857 551sun visor without mirror Left Hand Drive \/ Left Side1
 90Vsaddle tan 76-77

Pos__Part_Number__DescriptionRemarkQty.Model
 05Tblack
 21Sbrown 78-
(22) 477 857 552sun visor with mirror Right 1 924
 041black 76-77
 90Vsaddle tan 76-77
(22) 477 857 552 Csun visor with mirror Right 1
 05Tblack 78
 21Sbrown 78-
(22) 477 857 552 Asun visor without mirror Right 1
 041black
 90Vsaddle tan 76-77
 05Tblack
 21Sbrown 78
23 N 014 096 3tapping Schraube B 4,2 X 22   6
24 803 857 561 Asupport sun visor   2
25 900 143 047 07tapping Schraube B 4,2 X 19   4
26 900 151 028 02washer B 4,3   4
27 171 857 635coat hook   2
 01Cblack
28 171 857 650Schraube 4,8 X 16   2
