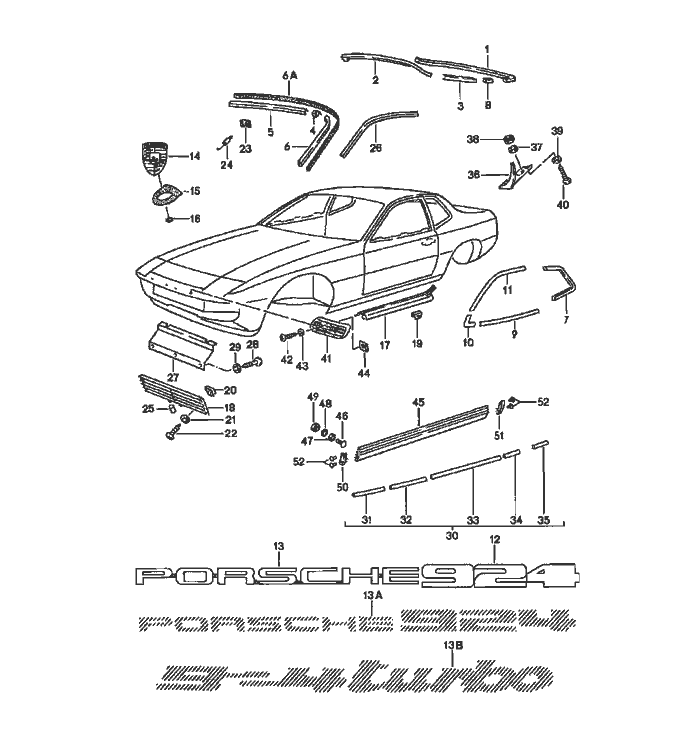

Porsche 924 Washer Teile

Washer

Pos Part NumberDescription  Remark Qty Model
  trim frame insignias
1 477 853 311trim frame rear window   1 924
2 477 853 313trim frame rear window   1 924
3 477 853 315trim frame Left 1 924
(3) 477 853 316trim frame rear window Right 1 924
4 477 853 339sleeve F >>92482 04015 F >>92483 30200 Left 1 924
(4) 477 853 340sleeve F >>92482 04015 F >>92483 30200 Right 1 924
5 477 853 343moulding F >>92482 03994 F >>92483 30198   1 924
5 477 853 343 Amoulding F 92482 03995>> F 92483 30199>>   1
6 477 853 345moulding F >>92482 03994 F >>92483 30198 Left 1 924
6 477 853 019moulding F 92482 03995>> F 92483 30199>> Left 1
(6) 477 853 346moulding F >>92482 03994 F >>92483 30198 Right 1 924
(6) 477 853 020moulding F 92482 03995>> F 92483 30199>> Right 1
7 477 853 365trim frame chrome Left 1 924
(7) 477 853 366trim frame chrome Right 1 924
Pos Part NumberDescription  Remark Qty Model
8 477 853 367sleeve   4 924
  trim frame
9 477 853 371 Amoulding Left 1 924
  chrome
(9) 477 853 372 Amoulding Right 1 924
  chrome
10 477 853 375moulding   2 924
  chrome
11 477 853 373 Amoulding Left 1 924
  door
  chrome
(11) 477 853 374 Amoulding Right 1 924
  door
  chrome
12 477 853 605logo  -78 1 924
13 477 853 606logo  -78 1 924
-477 853 663grommet  -78 6 924
13A 477 853 625logo Hinter791 924
  adhesive film
  black
(13A) 477 853 625 Alogo Hinter791 924
  adhesive film
  white
14 A 901 559 210 20lid emblem   1
14 993 559 211 00lid emblem   1
15 901 559 215 20desk pad   1
16 999 591 423 03tapping nut   2
17 477 853 657 Ascuff plate Left 1
(17) 477 853 658 Ascuff plate Right 1
18 944 559 135 00radiator grille   1
19 477 853 655clamp   10
20 N 015 438 1speed nut   2
  B 3,5 X 16,5

Pos__Part_Number__DescriptionRemarkQty.Model
21 900 151 028 02washer   2
  B 4,3
22 N 013 959 3tapping Schraube   2
  B 3,5 X 16
23 928 559 285 02clamp   16 924
  F >>92482 04015
  F >>92483 30200
23 477 853 659 Bclamp   16 924
  F 92482 04016>>
  F 92483 30201>>
24 431 805 121 Abolt   16
25 477 853 661grommet   2
26 477 853 705roof moulding Left 1
(26) 477 853 706roof moulding Right 1
27 477 853 715cooling air duct -78 2 924
(27) 477 853 717cooling air duct -78 1 924:M 573
28 900 143 007 02tapping Schraube -78 3 924
  B 4,2 X 13
29 900 151 028 02washer -78 3 924
  B 4,3
30 477 853 995set of moldings   1
  moulding
  comprising:
31 477 853 981side guard Left 1
(31) 477 853 982side guard Right 1
  body front section
  285 MM
32 477 853 983side guard Left 1
(32) 477 853 984side guard Right 1
  body front section
  395 MM
33 477 853 985side guard Left 1
(33) 477 853 986side guard Right 1
  door
  1123 MM

Pos__Part_Number__DescriptionRemarkQty.Model
34 477 853 987side guard Hinter Left 1
(34) 477 853 988side guard Hinter Right 1
  285 MM
35 477 853 989side guard Hinter Left 1
(35) 477 853 990side guard Hinter Right 1
  438 MM
36 477 853 383wheel cover Left 1
(36) 477 853 384wheel cover Right 1
  not for     (S)
37 N 011 692 3washer   8
  5,1
38 N 021 196 1lock nut   8
  M 5
-211 853 611sealing washer   6
-N 012 068 1clamping washer   2
  A 4
39 900 025 002 02washer   2
40 N 013 964 4tapping Schraube   2
  B 4,2 X 16
-477 853 665logo Left 1
-477 853 666logo Right 1
  "S"
  lid Vorder
  light
-477 853 665 Alogo Left 1
-477 853 666 Alogo Right 1
  "S"
  lid Vorder
  dark
  decorative film
  stripe
  special model
  white
-477 853 609adhesive film Left 1

Pos__Part_Number__DescriptionRemarkQty.Model
-477 853 610adhesive film Right 1 924
  MARTINI
  1 set
  special model     (USA)
  dolomite grey
  metallic
  stripe
  black/silver
-477 853 617decorative film Vorder Left 1 924
-477 853 618decorative film Vorder Right 1 924
-477 853 619decorative film Left 1 924
-477 853 620decorative film Right 1 924
  centre
-477 853 621decorative film Hinter Left 1 924
-477 853 622decorative film Hinter Right 1 924
-477 853 623decorative film Hinter 1 924
  special model     (USA)
  guards red
  SEBRING
  stripe
  yellow/red/white/black
-477 853 937decorative film   1 924
  1 set
  comprising:
-477 853 617 Clateral stripes Vorder Left 1 924
-477 853 618 Clateral stripes Vorder Right 1 924
-477 853 619 Clateral stripes Left 1 924
-477 853 620 Clateral stripes Right 1 924
-477 853 621 Clateral stripes Hinter Left 1 924
-477 853 622 Clateral stripes Hinter Right 1 924
-477 853 623 Cstripe Hinter 1
-477 853 629logo   2
  "SEBRING 79"
-477 853 631logo Vorder 1 924

Pos__Part_Number__DescriptionRemarkQty.Model
-911 559 319 06logo porsche lateral   2
  black
  hatched
-911 559 319 07logo porsche lateral   2
  white
  hatched
