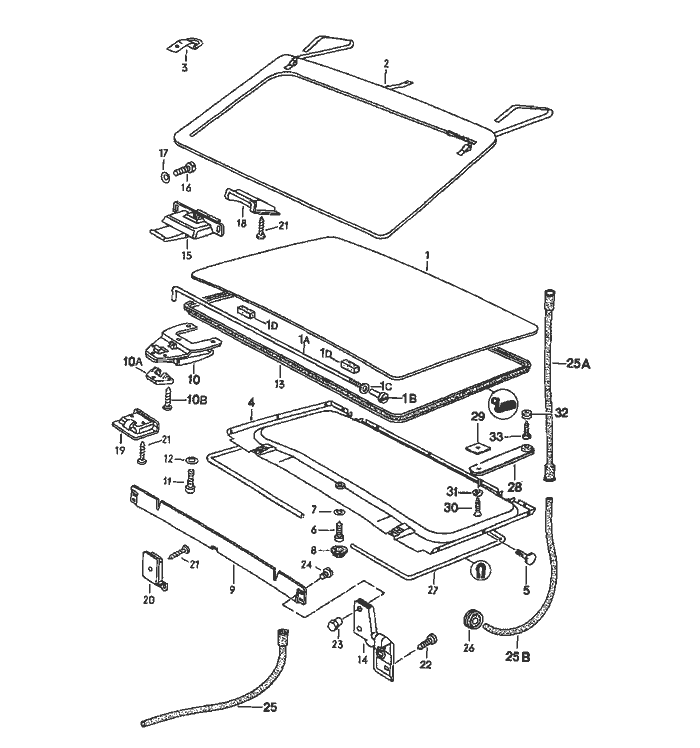

Porsche 924 Lifting Roof Teile

Pos	__Part_Number__	Description	Remark	Qty.	Model
		lifting roof			M 650
1	477 871 021	roof		1
1A	477 871 761	tensioning device		1
1B	477 871 763 A	threaded sleeve		1
1C	N 012 226 5	spring washer B 6		1
1D	477 871 789	sealing strip		2
2	477 871 027	retaining pocket		1
	05T	black	76
	92V	dark brown	76-77
	21S	brown	78
3	477 871 029	support retaining pocket		1
	041	black	76
	90V	dark brown	76
4	477 871 047	lining		1
	041	black
	90V	brown	76-77
	05T	black	78
	21S	brown	78
5	477 871 053	clip		11
6	311 867 167	tapping Schraube 4,2		1
7	900 151 028 02	washer 4,3		1
8	311 867 169	cap		1
	01C	black	76
	90V	brown	76
9	944 564 993 00	air deflector		1

Pos	__Part_Number__	Description	Remark	Qty.
10	477 871 217	roof catch	Vorder	2
10A	477 871 219	bearing bracket		2
	01C	black
10B	N 033 174 1	countersunk-head Schraube		6
		3 X 6
11	N 033 018 1	lens-head Schraube		2
		M 5 X 12
12	999 704 605 07	cone washer		2
13	944 564 114 01	gasket		1
14	477 871 635 A	hinge	Left	1
(14)	477 871 636 A	hinge	Right	1
15	477 871 649	roof catch	Hinter	2
16	900 146 003 02	oval-head Schraube		8
		AM 5 X 11
17	N 012 225 2	spring washer		4
		B 5
18	477 871 651 A	locking bracket		2
19	477 871 665 A	centring wedge	Vorder	2
20	477 871 683 A	bearing		1
21	N 013 964 4	tapping Schraube		9
		B 4,2 X 16
22	900 143 031 02	oval-head sheetmetal Schraube		4
23	477 871 701 A	cap nut		4
24	477 837 959	self-lock. fillister Schraube		4
25	321 877 233 C	water drain hose	Vorder	2
26	021 119 569	rubber sleeve		4
27	944 564 621 00	edge protection		1
28	477 871 501	securing strap		1
	43S	black

Pos	__Part_Number__	Description	Qty.
	87S	brown
29	477 871 505	reinforcement plate	1
30	N 014 091 4	tapping Schraube B 3,9 X 16	1
31	N 011 590 1	cone washer	1
32	477 871 509	ball knob	1
33	900 143 003 00	tapping Schraube B 3,5 X 16 POS. 28-33 see workshop manual	1
34	477 871 159	lever	2
35	N 013 327 1	roll pin 3 X 18	2
