Porsche 924 Luft Conditioner Teile

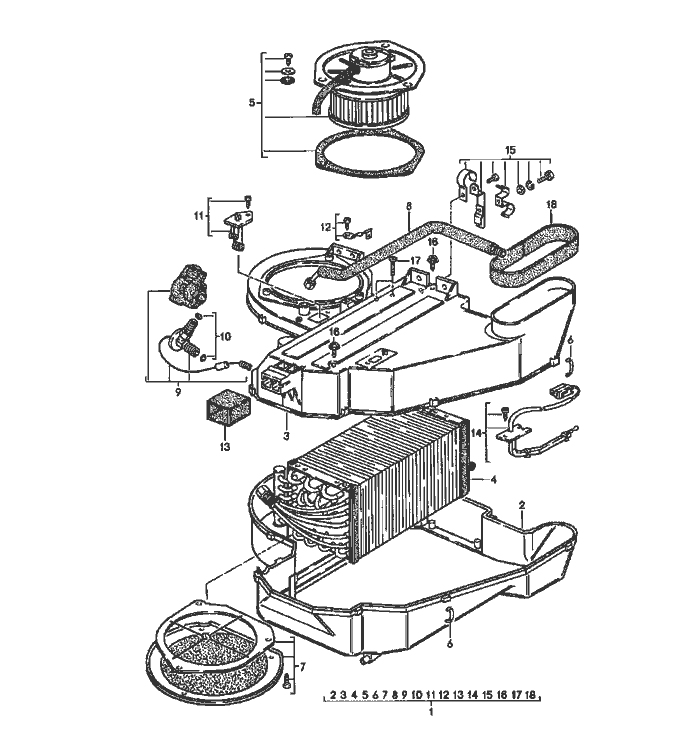

Pos	__Part_Number__	Description	Remark	Qty.	Model
		air conditioner	/LL 79		M 573
1	477 820 002	air conditioner		1
2	477 820 483	suction housing		1
		lower part
3	477 820 913	housing		1
		upper part
4	477 820 903	evaporator		1
5	477 820 905	blower		1
6	477 820 449	clamp		25
7	477 820 907	air cleaner		1
8	477 820 459	pressure line		1
9	477 820 909	expansion valve		1
10	477 820 911	set of o-rings		1
		for
		expansion valve
11	477 820 915	resistor		1
12	477 820 917	retaining bow		1
13	477 820 447 A	rubber boot		1
14	477 820 901	temperature sensor		1
15	477 820 919	pipe clamp		1
16	477 820 437	tapping Schraube		2
17	477 820 435 A	tapping Schraube		2
18	477 820 507 A	insulator		1
-	477 820 523	water drain hose		1
