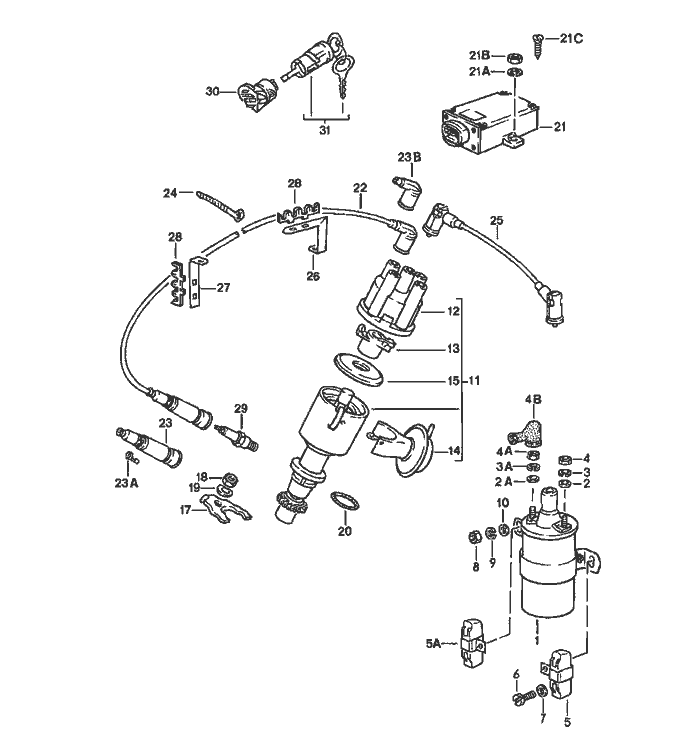

Porsche 924 Motor Elektriks 2 Teile

Pos	__Part_Number__	Description	Remark	Qty.	Model
		engine electrics 2			924
		see technical information
		GR.2 NR. 2/86
1	046 905 105	ignition coil		1
2	900 025 003 02	washer		1
2A	N 011 524 7	washer		1
3	N 012 005 3	lock ring		1
3A	N 012 006 4	lock ring		1
4	N 011 005 14	hexagon nut		1
4A	900 076 010 02	hexagon nut		1
4B	311 971 901	protection cap		1
5	046 905 109	series resistor	-78	1
		0,4 OHM
5A	046 905 109 A	series resistor	-78	1
		0,6 OHM
6	N 014 121 2	oval-head Schraube		4
		AM 4 X 6
7	N 012 004 2	lock ring		4
8	900 076 010 02	hexagon nut		2
9	N 012 006 4	lock ring		2
10	N 011 666 7	washer		2
11	047 905 205	distributor		1	XH,XF
-	047 905 205 X	distributor		1	XH,XF
(11)	047 905 205 C	distributor		1	XG,XE
-	047 905 205 CX	distributor		1	XG,XE
12	113 905 207 C	distributor cap		1
13	055 905 225 B	rotor		1
14	047 905 271	vacuum unit		1
15	039 905 241	dust cover		1

Pos	__Part_Number__	Description	Qty.
30	111 905 865 L	ignition starter switch	1
31	477 905 855 C	lock cylinder with keys w/o stipulated lock number	1
(31)	477 905 855 D	lock cylinder with keys with stipulated lock number	1
