Porsche 924 Mounting Teile Teile

Pos	__Part_Number__	Description	Qty.	Model

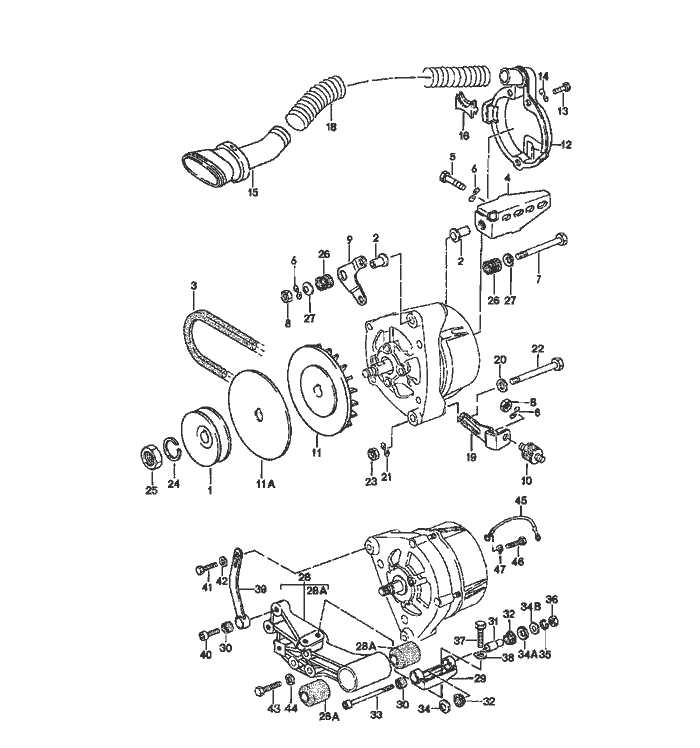

		mounting parts
		for
		generator
1	046 903 119	v-belt pulley	1
		66 $
(1)	035 903 119 C	pulley	1
		61 $
2	059 903 127 A	sleeve	2	924
3	047 903 137 A	v-belt	1	924
		for
		v-belt pulley
		66 $
(3)	999 192 200 50	v-belt	1	924
		for
		v-belt pulley
		61 $
4	046 903 143 A	support	1	924
5	N 010 239 11	hexagon-head bolt	2	924
		M 8 X 18
6	N 012 241 11	spring washer	4	924
		B 8 X 15
7	N 010 391 4	hexagon-head bolt	1	924
		BM 8 X 95
8	N 011 008 8	hexagon nut	2	924
9	046 903 145 A	support	1	924
(9)	046 903 145 B	support	1
10	047 903 149	rubber mounting	1	924
11	063 903 171	fan	1
11A	047 903 129	damping washer	1
12	046 903 187 A	protection cap	1	924
13	999 072 005 09	hexagon-head bolt	3	924
		M 6 X 12
14	N 012 226 5	spring washer	3	924
15	047 903 199	connection piece	1	924

Pos	__Part_Number__	Description	Qty.	Model
16	046 903 201 A	intermediate piece	1	924
17	047 903 211	clamp	1	924
18	477 819 395	hose	1	924
-	N 024 090 1	hose clamp	1	924
19	046 903 255 A	clamp	1	924
		for
		XF/XH/XK
(19)	046 903 255 B	clamp	1	924
		for
		XE/XG/XJ
20	823 711 815	washer	1	924
21	N 012 229 3	spring washer	1	924
22	N 010 370 5	hexagon-head bolt	1	924
		M 8 X 70
23	N 011 008 8	hexagon nut	1	924
24	N 012 016 1	lock ring	1
25	900 078 005 01	hexagon nut	1
		M 14 X 1,5
26	059 903 263 A	bush	2	924
27	059 903 265 A	concave washer	2	924
-	111 971 947 B	cable shoe	1
		A 5 X 6
-	111 971 949 B	cable shoe	3
		A 5 X 2,5
-	111 971 959	flat receptacle	1
		with
		clip
-	821 971 970	terminal sleeve housing	1
45	059 971 233 C	ground strap	1
		generator
46	N 010 210 13	hexagon-head bolt	1
		M 6 X 10
47	N 012 226 5	spring washer	1
