Porsche 924 Windscreen Wiper System Teile

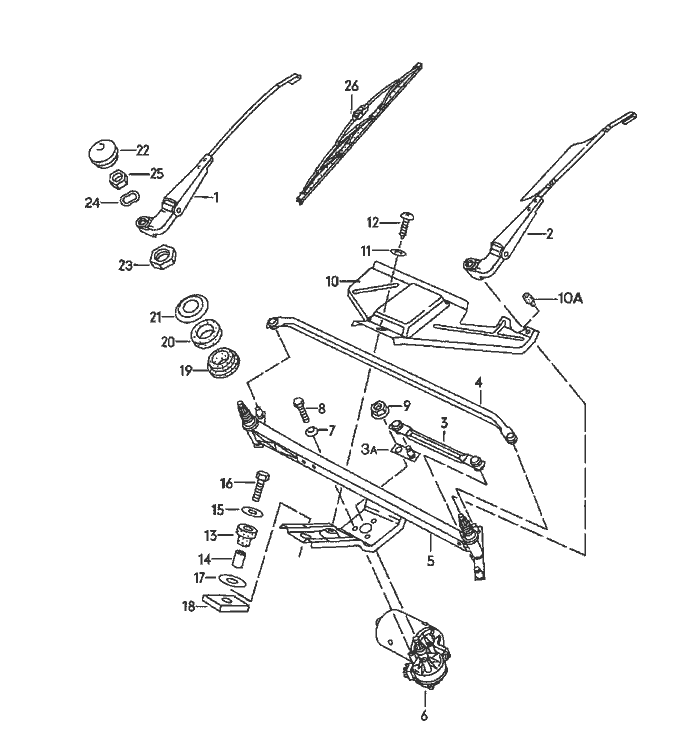

Windscreen Wiper System


Pos__Part_Number__DescriptionRemarkQty.Model
  windscreen wiper system
1 477 955 028wiper arm   1
  passenger's side
1 477 955 028wiper arm   1 (USA)(CDN)
  driver's side
(2) 477 955 027wiper arm Left Hand Drive 1
  with spoiler
  driver's side
  not for
  (USA),(CDN)
3 477 955 035 Bconnecting rod   1
  short
3A 477 955 039 Acrank   1
4 477 955 036 Bconnecting rod   1
  long
5 477 955 041 Bframe   1
6 477 955 113 Bwindscreen wiper motor   1
7 N 012 105 3serrated lock washer   3
8 999 072 005 09hexagon-head bolt   3
  M 6 X 12
9 999 084 045 02lock nut   1
10 477 955 123cover Left Hand Drive 1
10A 803 827 589 Abuffer   1
11 900 151 028 02washer   1
12 N 013 957 5tapping Schraube   1
  BZ 3,5 X 9,5
13 477 955 127rubber bush   1
14 477 955 128spacer sleeve   1
15 900 151 029 02washer   1
16 N 010 217 9hexagon-head bolt   1
  M 6 X 20
17 281 711 135washer   1
  12,2 X 28 X 2

Pos__Part_Number__DescriptionRemarkQty.Model
18 477 955 129desk pad  1
19 901 628 924 00rubber bush  2
20 901 628 923 01rubber bush  2
21 911 628 963 00flange washer  2
22 477 955 205cap  2
23 481 955 243 Ahexagon nut  2
24 803 955 437washer  2
25 N 011 008 8hexagon nut  2
26 477 955 425 Bwindscreen wiper blade  2
(26) 478 955 425wiper blade for wiper arm 477.955.028 477.955.027  2
