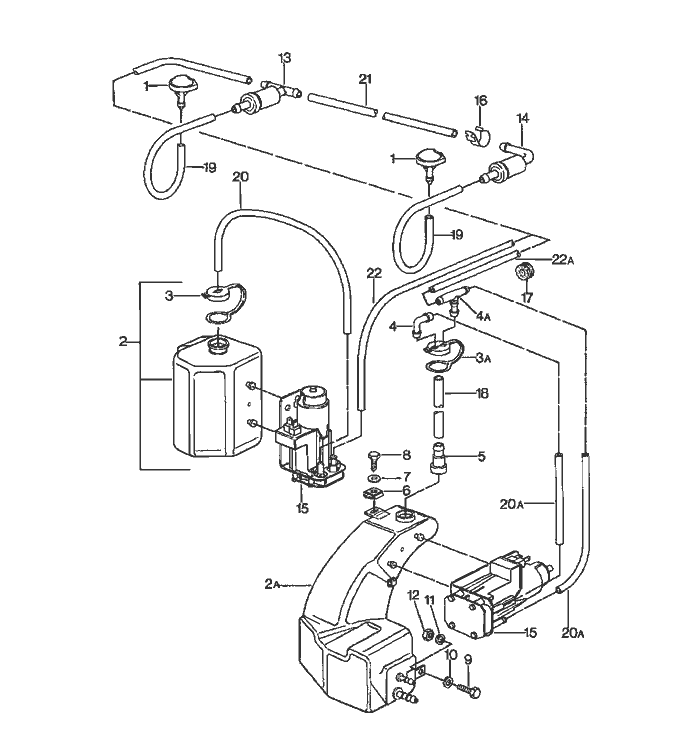

Porsche 924 Windscreen Washer System Teile

Pos	__Part_Number__	Description	Remark	Qty.
		windscreen washer system	-78
1	914 628 203 11	nozzle		2
2	823 955 451	fluid tank		1
		F >>92482 01225
		F >>92483 30098
2A	477 955 451 A	fluid tank		1
		F 92482 01226>>
		F 92483 30099>>
3	477 955 455	lid		1
		F >>92482 01225
		F >>92483 30098
3A	477 955 455	lid		1
4	477 955 456	connection piece		1
4A	477 955 459	t-socket		1
5	911 628 749 00	t-piece		1
6	* 477 955 461	speed nut		1
		6,3 X 22
7	* 900 151 029 02	washer		1
8	* N 013 891 1	tapping Schraube		1
		B 6,3 X 19
9	* 900 075 083 02	hexagon-head bolt		2
		M 8 X 25
10	* 900 151 008 02	washer		2
11	* 900 027 015 02	lock ring		2
12	* N 011 008 8	hexagon nut		2
13	914 628 433 00	valve		1
14	477 955 481	valve		1
15	823 955 651	pump		1
16	477 971 939	cable terminal		4
17	131 611 751	grommet		1
-	N 020 301 1	hose		*

Pos	__Part_Number__	Description	Qty.
18	-	460 MM F 92482 01226>> F 92483 30099>>	1
19	-	110 MM	2
20	-	400 MM F >>92482 01225 F >>92483 30098	1
20A	-	170 MM F 92482 01226>> F 92483 30099>>	2
21	-	460 MM	1
22	-	1900 MM F >>92482 01225 F >>92483 30098	1
22A	-	1450 MM F 92482 01226>> F 92483 30099>>	1
