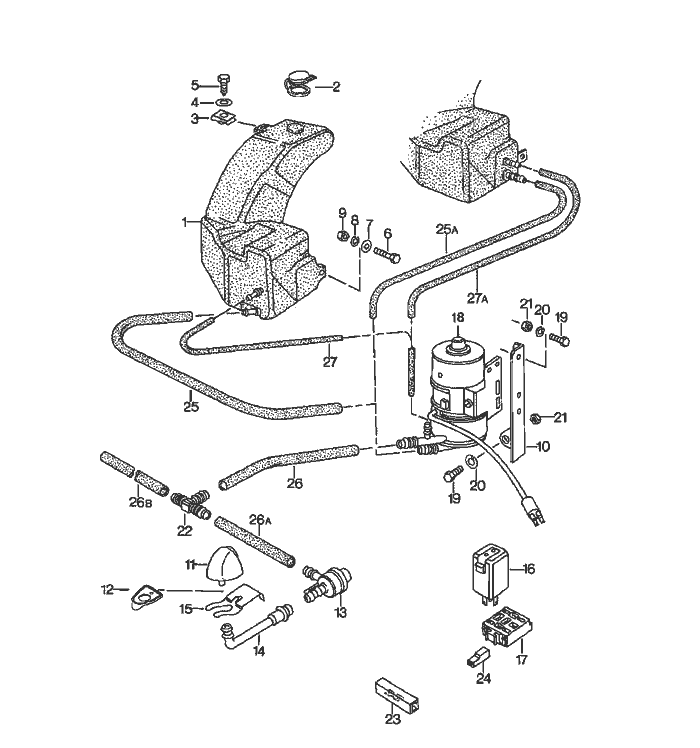

Porsche 924 Kopflight Washer System Teile

Pos	__Part_Number__	Description	Remark	Qty.	Model
		headlight washer system	-78		M 288
1	* 477 955 451 A	fluid tank		1
2	* 911 628 167 00	lid		1
3	* 477 955 461	speed nut		1
		6,3 X 22
4	* 900 151 029 02	washer		1
5	* N 013 891 1	tapping Schraube		1
		B 6,3 X 19
6	* 900 075 083 02	hexagon-head bolt		2
		M 8 X 25
7	* 900 151 008 02	washer		2
8	* 900 027 015 02	lock ring		2
9	* N 011 008 8	hexagon nut		2
10	* 477 955 661	support		1
		for
		pump
		POS. 1 -10
		F >>92482 01225
		F >>92483 30098
11	* 477 955 179	spray nozzle		2
12	* 477 955 196	desk pad		2	M 036/058
13	113 955 187	nozzle		2
14	* 477 955 194	connecting piece		2
		not for
		(USA),(CDN)
(14)	* 911 628 809 00	connecting piece		2	M 036
15	* 477 955 195 B	retainer spring		2
16	* 113 955 200	relay		1
17	* 135 937 501 A	terminal sleeve housing		1
18	477 955 679 A	pump		1
19	900 014 004 02	pan-head Schraube		3
		M 5 X 15

Pos	__Part_Number__	Description	Qty.
20	* N 012 005 3	lock ring	3
(20)	* N 011 692 3	washer	2
21	* N 011 005 14	hexagon nut	3
22	* 113 955 975 B	t-piece	1
23	* 111 937 077 E	line distributor	1
24	* 825 971 990	terminal sleeve housing	1
-	N 020 340 1	hose	*
25	-	450 MM	1
		F >>92482 01225
		F >>92483 30098
-	999 181 806 40	hose	X
		10 X 3
25A	-	140 MM	1
		F 92482 01226>>
		F 92483 30099>>
-	* N 020 126 1	pipe	*
		12,5 X 1,25
26	-	480 MM	1
26A	-	890 MM	1
26B	-	100 MM	1
-	N 020 301 1	hose	*
27	-	400 MM	1
		F >>92482 01225
		F >>92483 30098
27A	-	170 MM	1
		F 92482 01226>>
		F 92483 30099>>
-	* 477 809 035	support	1
		for
		container
		F >>92482 01225
		F >>92483 30098
-	477 955 997	installation set	1
		headlight washer system
		for subsequent installation
