Porsche 924 Kopflamp Teile

Kopflamp

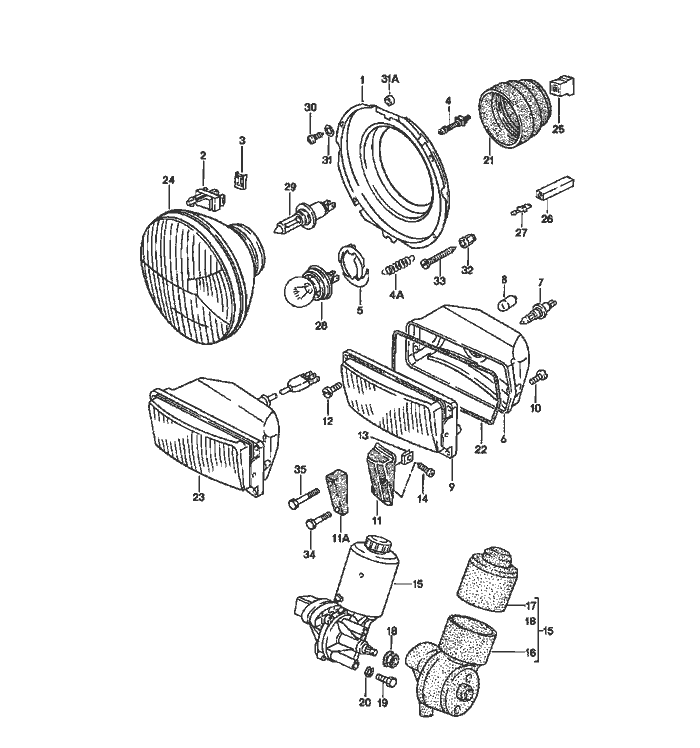

Pos__Part_Number__DescriptionRemarkQty.Model
  headlamp
  electric motor
  pop-up headlight
  not for
  (USA),(CDN)
1 477 941 046retaining frame   2
2 321 941 133articulated piece   2
3 321 941 135tab washer   2
  articulated piece
4 113 941 141adjusting Schraube   4
4A 321 941 157tension spring   2
5 111 941 160retainer spring   2 (J)
6 477 941 311reflector Left 1
(6) 477 941 311 Areflector Right 1
7 900 631 126 90halogen bulb   2
  YC 12 V 55 W
8 900 631 103 90bulb   2
9 944 631 407 00additional headlamp Left 1
  with
  retaining frame
(9) 944 631 408 00additional headlamp Right 1
  with
  retaining frame
10 N 014 122 8oval-head Schraube   6
11 477 807 153buffer Left 1
(11) 477 807 154buffer Right 1
11A 477 807 401buffer Left 1 M 058
(11A) 477 807 402buffer Right 1 M 058
12 900 146 011 02oval-head Schraube   6
  AM 4 X 10
13 477 807 191speed nut   2
14 900 143 047 07tapping Schraube   2
  B 4,2 X 19

Pos__Part_Number__DescriptionRemarkQty.Model
15 477 941 379 Aelectric motor -78 1
  pop-up headlight
(15) 477 941 379 Belectric motor 79 1 924
  pop-up headlight
16 477 941 386protection cap   1 924
  lower
17 477 941 387protection cap   1
-477 941 383diode   X
  pop-up headlight
18 999 084 045 02lock nut   1
(18) 999 084 049 02lock nut   1
19 999 072 005 09hexagon-head bolt   3
  M 6 X 12
20 N 012 006 4lock ring   3
21 477 941 659 Acap   2
  headlamp unit
22 477 941 715gasket   2
23 477 941 751 Dhigh-beam headlight Left 1
  for
  F >>92481 30450
  use also:
  intermediate cable
  477.971.347
(23) 477 941 752 Dhigh-beam headlight Right 1
  for
  F >>92483 30450
  use also:
  intermediate cable
  477.971.347
(24) 477 941 775 Cheadlamp   2 (J)
25 111 941 341terminal sleeve housing   2
  3-pole
26 111 971 977plug with guide   6

Pos__Part_Number__DescriptionRemarkQty.Model
27 111 971 986flat plug with clip  6
28 900 631 109 90bulb  2 (J)
30 N 013 964 4tapping Schraube B 4,2 X 16  8
(30) 900 143 041 00tapping Schraube B 3,9 X 19  8
31 900 025 003 02washer  8
(31) 900 025 002 02washer  8
31A 477 941 543spacer sleeve  X
32 477 857 173clip  2
33 N 043 979 2tapping Schraube BZ 4,2 X 45  2
34 N 030 116 1oval-head Schraube  2 M 058
35 N 030 117 2oval-head Schraube  2 M 058
  fog headlamp see group 0/02/00
