Porsche 924 Kopflamp Teile

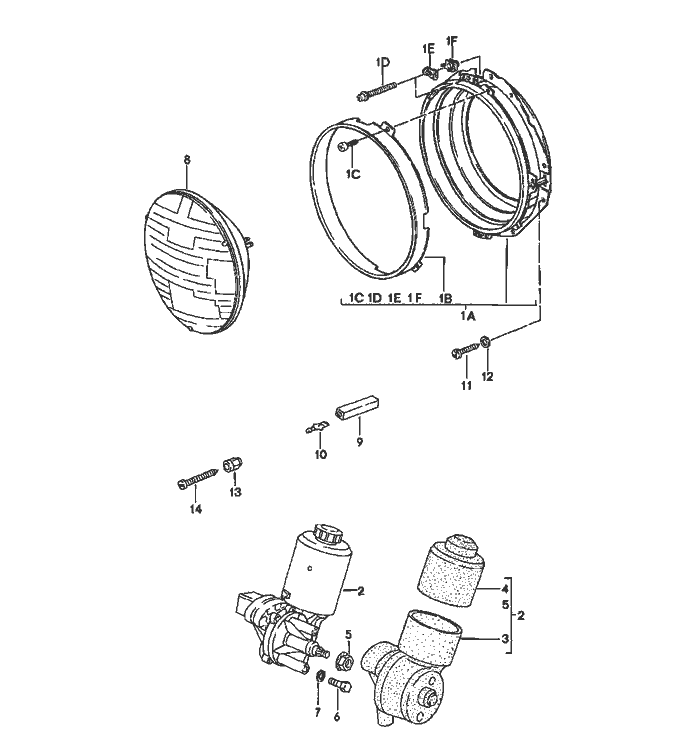

Pos	__Part_Number__	Description	Remark	Qty.	Model
		headlamp
		electric motor
		pop-up headlight			(USA),(CDN)
1A	477 941 050 A	retaining frame		2
(1B)	111 941 049	retaining ring		2
		F >>92472 30502
1B	111 941 049 A	retaining ring		2
		F 92472 30503>>
1C	N 013 961 2	tapping Schraube		6
1D	477 941 143	adjusting Schraube		4
		F 92472 30503>>
1E	477 941 145	retainer spring		4
		F 92472 30503>>
1F	477 941 147	threaded piece		4
		F 92472 30503>>
2	477 941 379 A	electric motor	-78	1
		pop-up headlight
(2)	477 941 379 B	electric motor	79	1
		pop-up headlight
3	477 941 386	protection cap		1
		lower
4	477 941 387	protection cap		1
-	477 941 383	diode		X
		pop-up headlight
5	999 084 045 02	lock nut		1
(5)	999 084 049 02	lock nut		1
6	999 072 005 09	hexagon-head bolt		3
		M 6 X 12
7	N 012 006 4	lock ring		3
8	N 017 614 2	sealed-beam		2
		insert
		12 V -60/50 W
8	999 631 127 90	headlamp unit		2
		SEALED BEAM
		12V -60/50W

Pos	__Part_Number__	Description	Remark	Qty.	Model
9	111 971 977	plug with guide		6
10	111 971 986	flat plug with clip		6
11	N 013 964 4	tapping Schraube B 4,2 X 16		8
(11)	900 143 041 00	tapping Schraube B 3,9 X 19		8
12	900 025 003 02	washer		8
(12)	900 025 002 02	washer		8
13	477 857 173	clip		2
14	N 043 979 2	tapping Schraube BZ 4,2 X 45		2
		fog headlamp see group 0/02/00
