Porsche 924 Elektrik Fan Teile

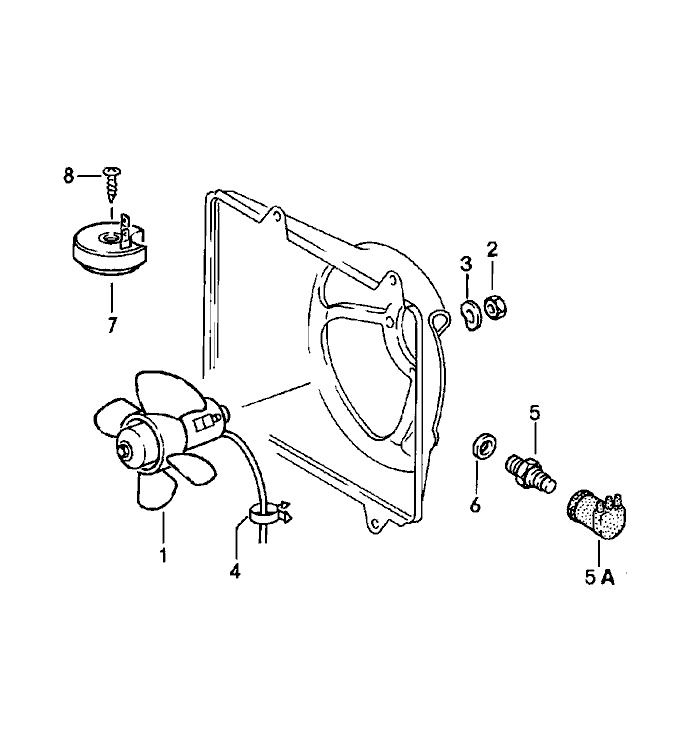

Elektrik Fan


Pos__Part_Number__DescriptionRemarkQty.Model
  electric fan
1 477 959 455 Celectric fan  1
(1) 823 959 455 Felectric fan use also:  1 M 573
-477 971 349intermediate cable  X
2 900 076 010 02hexagon nut  3
3 N 011 524 7washer  3
4 999 651 168 40cable holder  1
5 823 959 481 Fswitch  1
5A 477 971 934protection cap  1
6 900 123 118 30sealing ring A 22 X 27  1
7 477 905 053series resistor  1
(7) 477 905 052series resistor F 92472 31687>> F 92473 30075>>  1 M 573
8 N 013 968 1tapping Schraube B 4,8 X 13 -78 1
(8) N 013 964 4tapping Schraube B 4,2 X 16 791
-477 971 349intermediate cable use also: 477.959.455.B 823.959.455.F F >>92472 30686 F >>92472 30074  1
