Porsche 924 Reperatur Kits Teile

Reperatur Kits

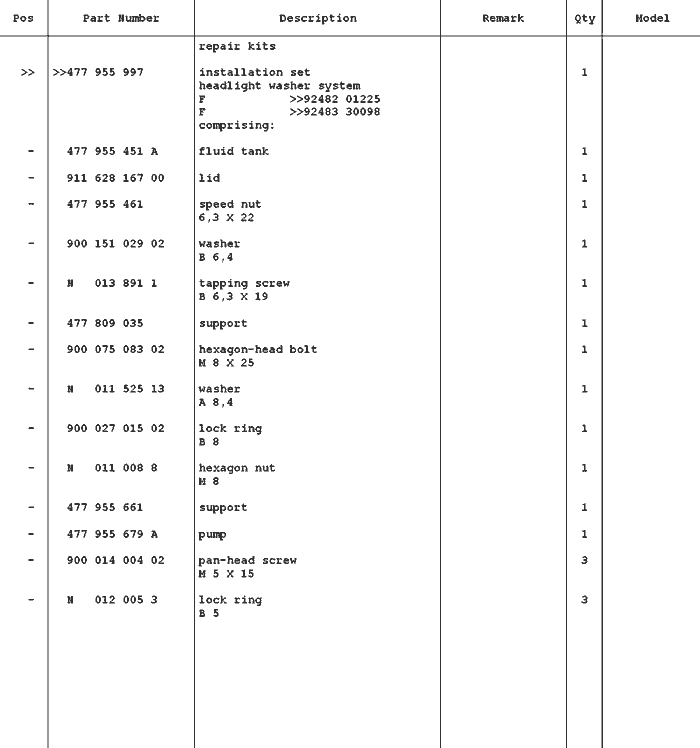

Pos__Part_Number__DescriptionRemarkQty.Model
  repair kits
>> 477 955 997installation set  1
  headlight washer system
  F >>92482 01225
  F >>92483 30098
  comprising:
-477 955 451 Afluid tank  1
-911 628 167 00lid  1
-477 955 461speed nut  1
  6,3 X 22
-900 151 029 02washer  1
  B 6,4
-N 013 891 1tapping Schraube  1
  B 6,3 X 19
-477 809 035support  1
-900 075 083 02hexagon-head bolt  1
  M 8 X 25
-N 011 525 13washer  1
  A 8,4
-900 027 015 02lock ring  1
  B 8
-N 011 008 8hexagon nut  1
  M 8
-477 955 661support  1
-477 955 679 Apump  1
-900 014 004 02pan-head Schraube  3
  M 5 X 15
-N 012 005 3lock ring  3
  B 5
-N 011 005 14hexagon nut  3
  M 5
-N 011 692 3washer  3
  5,1
-N 020 340 1hose  1
  10 X 3 X 500 MM

Pos__Part_Number__DescriptionRemarkQty.Model
-N 020 126 1pipe  1
  12,5 X 1,25 X 2000 MM
-N 020 301 1hose  1
  4 X 1 X 500 MM
-113 955 975 Bt-piece  1
-113 955 187nozzle  2
-477 955 194connecting piece  2
-477 955 195 Bretainer spring  2
-477 955 179spray nozzle  2
-900 074 015 02hexagon-head bolt  1
  M 6 X 30
-900 151 029 02washer  2
  6,4
-900 076 010 02hexagon nut  1
  M 6
-N 012 226 5spring washer  1
-135 937 501 Aterminal sleeve housing  1
-113 955 200relay  1
-825 971 990terminal sleeve housing  1
-111 937 077 Eline distributor  1
-477 971 205wiring harness  1
-477 971 322double line  1
-477 971 827 Bcable connection  1
-477 955 702switch  1
  together with
  M036
  use also:
-911 628 809 00connecting piece  2
-477 955 196desk pad  2

Pos__Part_Number__DescriptionRemarkQty.Model
>> 477 955 997 Ainstallation set  1
  headlight washer system
  F 92482 01226>>
  F 92483 30099>>
  F >>92482 11638
  F >>92483 30450
  comprising:
-477 955 679 Apump  1
-900 014 004 02pan-head Schraube  2
  M 5 X 15
-N 012 005 3lock ring  2
  B 5
-N 011 692 3washer  2
  5,1
-N 011 005 14hexagon nut  2
  M 5
-999 181 806 40hose  1
  10 X 3 X 500 MM
-N 020 301 1hose  1
  4 X 1 X 500 MM
-N 020 126 1pipe  1
  12,5 X 1,25 X 2000 MM
-113 955 975 Bt-piece  1
-113 955 187nozzle  2
-477 955 194connecting piece  2
-477 955 195 Bretainer spring  2
-477 955 179spray nozzle  2
-135 937 501 Aterminal sleeve housing  1
-113 955 200relay  1
-825 971 990terminal sleeve housing  1
-477 971 827 Bcable connection  1
-477 971 205wiring harness  1
-477 971 322double line  1

Pos__Part_Number__DescriptionRemarkQty.Model
-477 955 702switch  1
  together with
  M036
  use also:
-911 628 809 00connecting piece  2
-477 955 196desk pad  2
>> 477 955 997 Binstallation set 791
  headlight washer system
  comprising:
-191 955 681pump  1
-431 955 465 Agasket  1
-N 020 126 1pipe  X
  12,5 X 1,25
--410 MM  1
--890 MM  1
--100 MM  1
-113 955 975 Bt-piece  1
-477 955 183pressure control valve  2
-477 955 177jet carrier  2
-N 019 121 1nut  2
  MPG 11
-928 618 111 00relay  1
-135 937 501 Aterminal sleeve housing  1
-825 971 990terminal sleeve housing  1
-111 937 077 Eline distributor  1
-477 971 827 Bcable connection  1
-477 971 205wiring harness  1
-477 971 322 Adouble line  1
-477 955 702switch  1

Pos__Part_Number__DescriptionRemarkQty.Model
>> 477 941 903 Ainstallation set 791
  fog headlamp
  light-diffusing lens
  white
  comprising:
-477 941 703 Bfog headlamp  2
-900 631 126 90halogen bulb  2
  YC 12 V -55 W
-N 011 010 6hexagon nut  2
  M 10
-900 027 016 02lock ring  2
  B 10
-900 025 008 09washer  2
  A 10,5
-131 867 549clamp  2
-477 941 535switch  1
-477 941 535switch  1
-141 957 397 Abulb socket  1
-900 631 132 90bulb  1
  W 12 V -1,2 W
-477 963 137relay  1
-477 971 490 Awiring harness  1
-477 971 491 Awiring harness  1
-477 971 827 Bcable connection  1
>> 477 941 903installation set -78 1
  fog headlamp
  light-diffusing lens
  white
  comprising:
-477 941 703 Bfog headlamp  2
-900 631 126 90halogen bulb  2
  YC 12 V -55 W
-N 011 010 6hexagon nut  2
  M 10

Pos__Part_Number__DescriptionRemarkQty.Model
-900 027 016 02lock ring B 10  2
-900 025 008 09washer A 10,5  2
-131 867 549clamp  2
-477 941 535switch  1
-477 941 535switch  1
-141 957 397 Abulb socket  1
-900 631 132 90bulb W 12 V -1,2 W  1
-928 615 119 00relay  1
-477 971 490wiring harness  1
-477 971 491 Awiring harness  1
-477 971 946 Aintermediate cable  2
-477 971 827 Bcable connection  1
