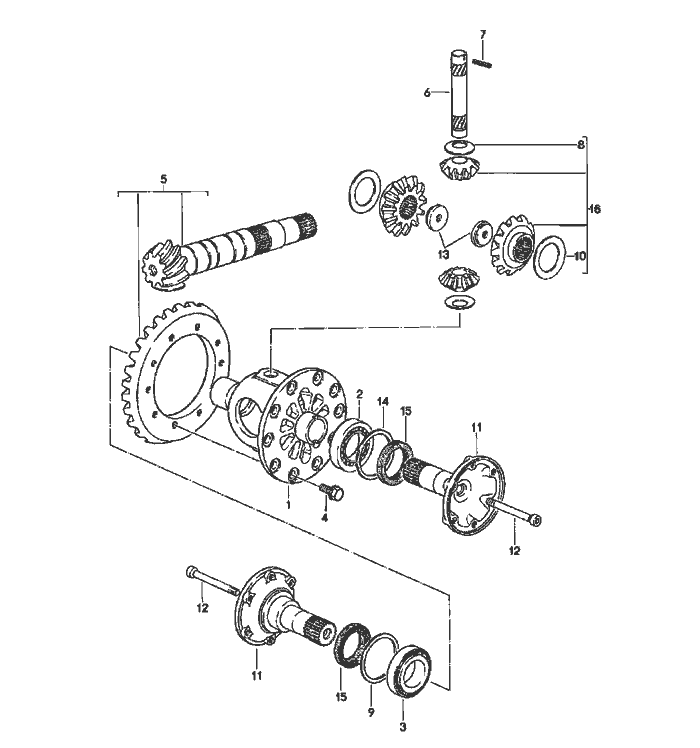

Porsche 924 Differential Teile

Pos	__Part_Number__	Description	Remark	Qty.	Model
		differential			924
			81-		TURBO
		manual transmission
		VQ VR UV MD
		ME MF MB MX
1	088 409 121 B	differential housing		1
2	016 409 123	taper roller bearing	Left	1
3	113 517 185 C	taper roller bearing	Right	1
4	088 409 135 A	hexagon-head bolt		10
		M 10 X 18
5	016 409 143 AJ	ring gear and pinion shaft		1	VQ MD MB MX
		9 : 35
5	016 409 143	ring gear and pinion shaft		1	VR UV ME MF
		9 : 37
6	005 409 177	bolt		1
7	N 013 319 1	tensioning sleeve		1
		5 X 36
8	* 016 409 170	thrust washer		2
9	113 517 201 A	shim	Right	1
		0,15
(9)	113 517 202 A	shim	Right	X
		0,20
(9)	113 517 203 A	shim	Right	X
		0,30
(9)	113 517 204 A	shim	Right	X
		0,40
(9)	113 517 205 A	shim	Right	X
		0,50
(9)	113 517 206 A	shim	Right	X
		0,60
(9)	02A 409 210 A	shim	Right	X
		0,70
(9)	02A 409 210 C	shim	Right	X
		0,80

Pos	__Part_Number__	Description	Remark	Qty.	Model
(9)	02A 409 210 E	shim	Right	X
		0,90
(9)	02A 409 210 G	shim	Right	X
		1,00
(9)	113 517 211 A	shim	Right	X
		1,20
10	* 011 519 215	thrust washer		2
		0,50
(10)	088 409 249	thrust washer		X
		0,60
(10)	088 409 249 A	thrust washer		X
		0,70
(10)	088 409 249 B	thrust washer		X
		0,80
11	088 409 355 C	flanged shaft		2
12	088 409 359	Schraube		2
13	016 409 161	nut		2
14	018 409 381	shim	Left	1
		0,15
(14)	018 409 383	shim	Left	X
		0,20
(14)	018 409 385	shim	Left	X
		0,25
(14)	018 409 387	shim	Left	X
		0,50
(14)	018 409 389	shim	Left	X
		0,80
(14)	018 409 391	shim	Left	X
		1,00
(14)	018 409 393	shim	Left	X
		1,50
15	* 016 409 399 B	radial shaft seal		2
16	* 090 598 081	repair kit		1
		for
		differential
