Porsche 924S Nockenwelle Teile

Nockenwelle

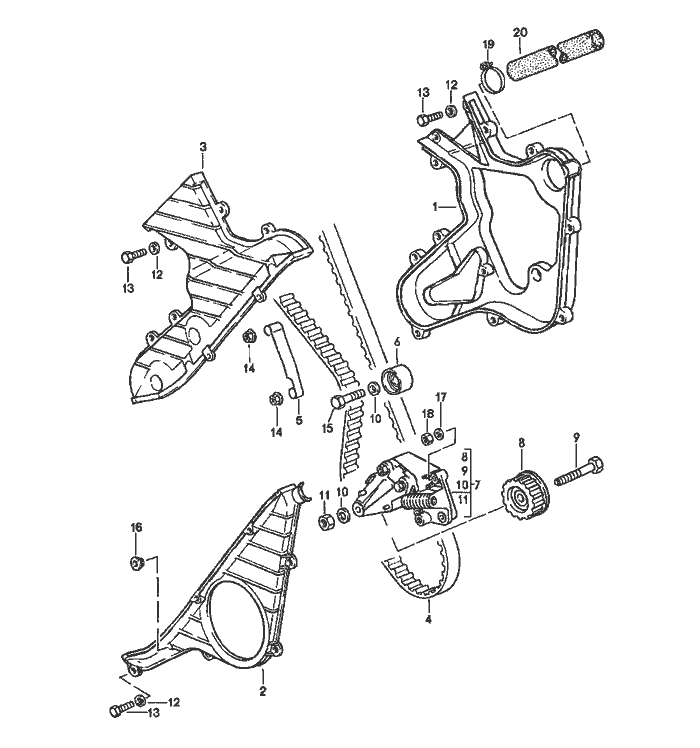

Pos__Part_Number__DescriptionRemarkQty.Model
  camshaft
  driving mechanism
  M 43H 01920 >>   M44.07
  M 43H 60385 >>   M44.08
1 944 105 039 02toothed belt covering  1
2 944 105 037 00toothed belt covering  1
3 944 105 041 01toothed belt covering  1
4 944 105 157 04toothed belt  1
5 944 105 213 01securing clip  1
6 944 105 241 03roller  1
7 944 105 067 14tensioner for toothed belt  1
8 944 105 631 04tensioning roller  1
9 N 010 445 2hexagon-head bolt  1
  M 10 X 45
10 900 025 008 09washer  2
11 900 910 034 02lock nut  1
12 N 011 524 7washer  11
13 999 072 005 09hexagon-head bolt  11
  M 6 X 12
14 999 084 092 02lock nut  2
15 900 075 043 02hexagon-head bolt  1
  M 10 X 30
16 999 703 164 40stopper  1
17 900 025 007 02washer  3
18 900 076 025 02hexagon nut  3
19 999 512 252 02hose clamp  1
20 944 105 149 01hose  1
