Porsche 924S Balance Shaft Teile

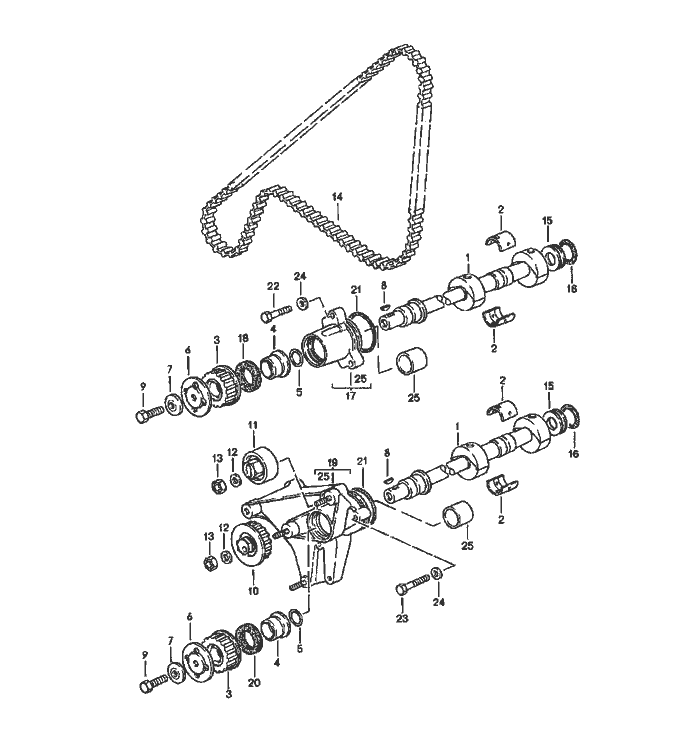

Pos	__Part_Number__	Description	Remark	Qty.	Model
		balance shaft
		driving mechanism
1	944 102 923 00	balance shaft		2
2	944 101 121 07	bearing shell		4
		M >> 43H 01919			M44.07
		M >> 43H 60384			M44.08
2	944 101 121 10	bearing shell		4
		M 43H 01920 >>			M44.07
		M 43H 60385 >>			M44.08
3	944 102 205 04	gear wheel		2
4	928 105 139 02	spacer sleeve		2
5	944 105 321 00	gasket		2
6	944 102 281 04	flange washer		2
7	944 102 213 00	washer		2
8	N 012 708 2	woodruff key		2
9	N 010 275 3	hexagon-head bolt		2
		M 10 X 35
10	944 102 025 07	tensioning roller		1
11	944 102 277 06	roller		1
12	N 011 527 12	washer		2
		A 10,5
13	N 022 149 2	lock nut		2
		M 10
14	944 102 219 04	toothed belt		1
		technical information
		group 1
		NR.15/95
		attention
15	944 101 145 02	locking ring		2
		M >> 43H 01919			M44.07
		M >> 43H 60384			M44.08
15	944 101 145 03	locking ring		2
		M 43H 01920 >>			M44.07
		M 43H 60385 >>			M44.08
16	999 701 614 40	round seal	86	2

Pos	__Part_Number__	Description	Remark	Qty.	Model
16	999 701 614 40	round seal M >> 43H 01919 M >> 43H 60384			2	M44.07 M44.08
16	999 701 875 40	round seal M 43H 01920 >> M 43H 60385 >>			2	M44.07 M44.08
17	944 101 045 00	bearing case	Left		1
18	999 113 282 40	shaft sealing ring 30 X 47	Left		1
19	944 101 042 02	bearing case	Right		1
20	999 113 281 40	shaft sealing ring 30 X 48	Right		1
21	999 701 652 40	o-ring 56,7 X 3,53			2
22	N 010 335 5	hexagon-head bolt M 8 X 35			3
23	N 010 360 6	hexagon-head bolt M 8 X 60			3	M 657
24	900 025 007 02	washer A 8,4			6
25	944 101 125 02	bearing sleeve			2
25	944 101 125 50	bearing sleeve oversize 0.50 mm			2
26	944 347 441 02	sleeve			1	M 657
