Porsche 924S Wasser Kühlung Teile

Wasser Kühlung

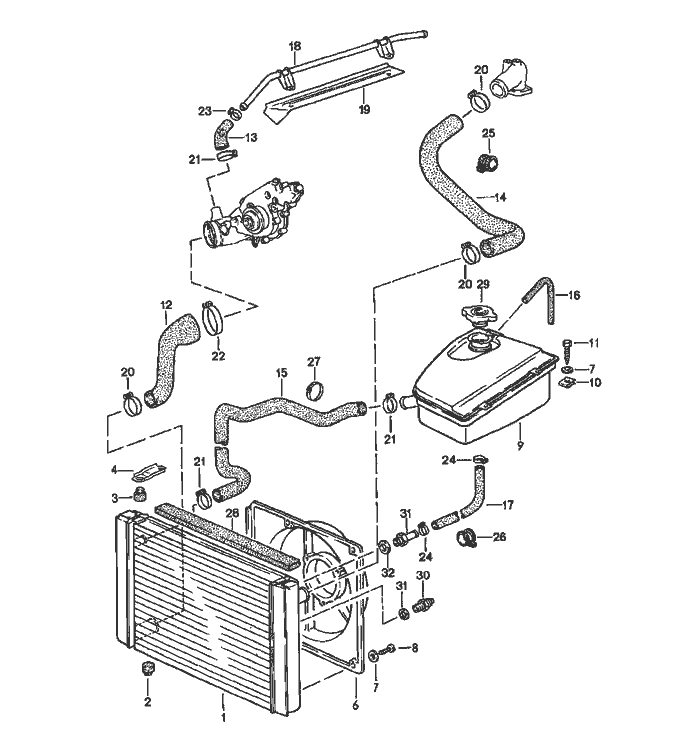

Pos__Part_Number__DescriptionRemarkQty.Model
  water cooling
1 944 106 031 03radiator  1
1 944 106 027 06radiator AUT. 1
  M >> 43H 01919   M44.07
  M >> 43H 60384   M44.08
1 944 106 027 06radiator AUT. 1
  M 43H 01920 >>   M44.07
  M 43H 60385 >>   M44.08
2 944 106 153 01rubber mounting  2
3 A 944 106 155 03rubber mounting  2
  M >> 43H 01919
  M >> 43H 60384
3 944 106 155 03rubber mounting  2
  M 43H 01920 >>
  M 43H 60385 >>
4 944 106 151 02support  2
6 944 106 141 02airscoop  1
(6) 944 106 143 02airscoop  1 M 573
7 N 011 524 7washer  X
8 900 187 111 02combination Schraube  X
  BZ 6,3 X 12
9 944 106 125 06expansion tank  1
10 477 955 461speed nut  2
11 N 090 172 1combination Schraube  2
  6,3 X 19
12 944 106 237 06water hose  1
13 944 106 241 03water hose  1
14 944 106 239 04water hose  1
15 944 106 245 04water hose  1
16 944 106 251 00water hose  1
17 944 106 249 01water hose  1
18 944 106 243 02water tube  1

Pos__Part_Number__DescriptionRemarkQty.Model
19 944 106 247 00heat shield  1
20 999 512 500 00hose clamp  3
  32 -50
21 999 512 392 00hose clamp  2
  SGT 20-32/13 W2
22 999 512 390 00hose clamp  1
  SGT 60-80/13 W2
23 999 512 346 00hose clamp  1
  16 -25
24 999 512 554 00hose clamp  2
  LA 12-20/9
25 999 511 130 02pipe clamp  1
26 999 511 118 02pipe clamp  1
27 477 971 850 Atie-wrap  2
28 944 556 837 00sealing rubber  1
29 944 106 257 00lid  1
30 944 606 481 00temperature switch  1
31 900 123 149 70sealing ring  1
  22 X 27
31 944 106 927 00Schraube socket  1
32 944 106 928 00sealing ring  1
  A 18 X 12
-944 106 353 00Schraube plug  1
  M 10 X 1
-944 106 353 01Schraube plug  1
  M 10 X 1,5
