Porsche 924S Kraftstoff System Teile

Kraftstoff System

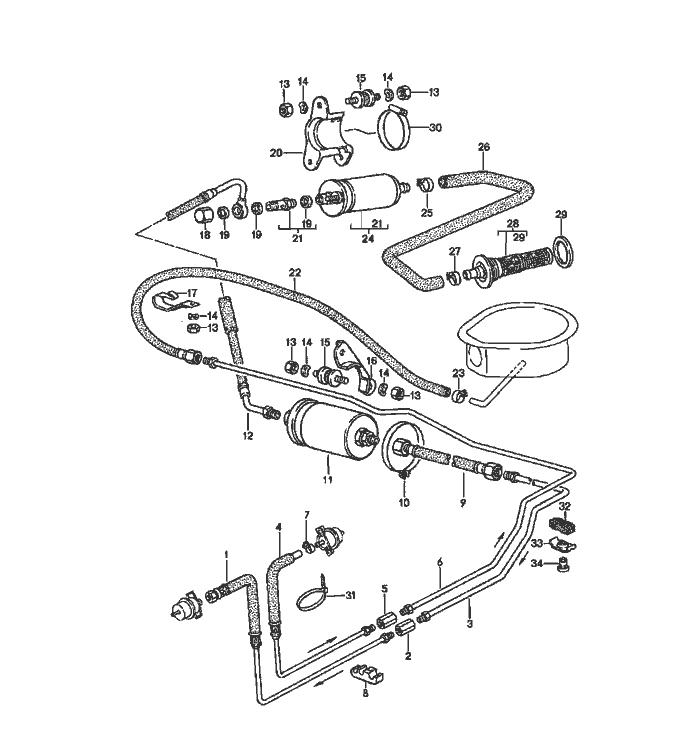

Pos__Part_Number__DescriptionRemarkQty.Model
  fuel system
1 944 356 943 03fuel line  1
2 477 209 169connecting piece  1
3 477 209 178 Afuel line  1
4 944 356 945 03fuel line  1
5 477 209 161connecting piece  1
6 477 209 176 Afuel line  1
7 N 023 577 2hose clamp  1
  A 9 X 14 ZY
8 944 356 591 00support  12
9 944 356 048 02fuel hose  1
10 N 024 316 1hose clamp  1
  A 12 X 75
11 928 110 253 06fuel filter  1
12 944 356 041 07fuel hose  1
13 900 076 010 02hexagon nut  10
  M 6
14 N 012 226 5spring washer  10
  A 6
15 944 610 115 00bonded rubber mounting  5
16 944 356 471 01support  1
17 944 356 593 01support  1
18 N 011 069 1cap nut  1
  M 12 X 1,5
19 N 013 812 3sealing ring  2
  A 12 X 15,5
20 944 356 295 00support  1
21 944 608 951 01check valve  1
22 477 209 071 Cfuel hose  1

Pos__Part_Number__DescriptionRemarkQty.Model
23 999 512 160 02hose clamp A 9 X 13  1
24 944 608 102 04fuel pump  1
25 N 023 526 2hose clamp A 9 X 18  1
26 944 356 557 00fuel hose  1
27 999 512 346 00hose clamp A 9 X 20  1
28 928 201 081 04fuel filter  1
29 928 201 187 02sealing ring  1
30 999 512 394 00hose clamp  1
31 N 020 902 1tie-wrap  2
32 999 591 975 40rubber mounting  2
33 999 511 199 40clamp  2
34 999 511 199 40clamp  2
