Porsche 924S Auspuff System Teile

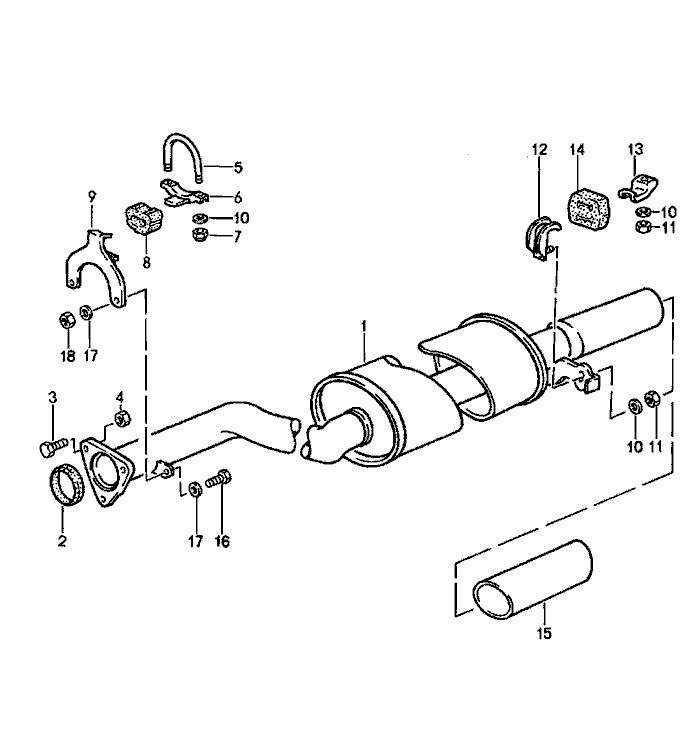

Auspuff System


Pos__Part_Number__DescriptionRemarkQty.Model
  exhaust system   M44.09/10
  rear muffler
1 944 111 041 03rear muffler  1 M44.09
1 944 111 083 01rear muffler  1 M44.10
1 944 111 041 03rear muffler  1 M44.10 (CH)
2 944 111 204 00sealing ring  1 M44.09
2 944 111 203 00sealing ring  1 M44.10
2 944 111 204 00sealing ring  1 M44.10 (CH)
3 900 074 268 02hexagon-head bolt  3
  BM 8 X 40
4 999 084 052 02lock nut  3
5 477 253 139clip  1
6 944 111 307 00support  1
7 900 910 003 02lock nut  2
8 944 111 142 01rubber mounting  1
9 944 111 211 00hook  1 M44.09
9 931 111 061 02hook  1 M44.10
10 900 025 007 02washer  6
11 900 076 025 02hexagon nut  4
12 944 111 064 01hook  2 M44.09
12 931 111 264 01hook  2 M44.10
13 931 111 121 01hook  2
14 928 111 259 02rubber mounting  2
15 477 253 191 Cornamental exhaust pipe  1
16 900 075 087 02hexagon-head bolt  2 M44.10
17 900 025 007 02washer  4 M44.10
18 900 076 025 02hexagon nut  2 M44.10
