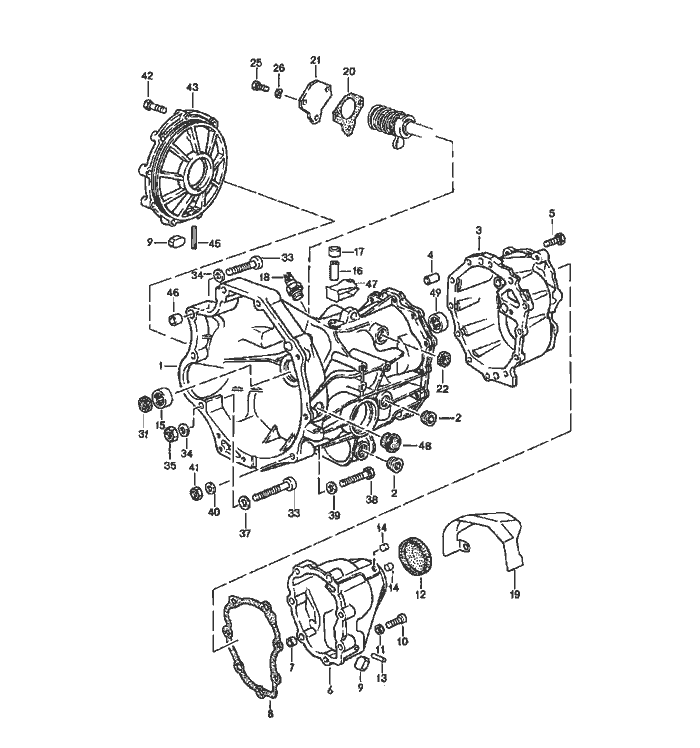

Porsche 924S Ersatz- Getriebe Teile

Pos	__Part_Number__	Description	Remark	Qty.	Model
		replacement transmission
		transmission case
		manual transmission
-	016 300 045 C	replacement transmission		1	QK
		ready for installation
-	016 300 045 Q	replacement transmission		1	7Q
		with
		limited-slip differential
		ready for installation
1	016 301 103 AF	transmission case		1
2	111 301 127 E	Schraube plug		2
		M 24 X 1,5
3	016 301 211 F	end plate		1
		G >> QK 28 08 6
		G >> 7Q 28 08 6
3	016 301 211 M	end plate		1
		G QK 29 08 6 >>
		G 7Q 29 08 6 >>
		see tpi
		GR.3 NR.1
4	014 301 473	guide sleeve		2
5	N 010 332 4	hexagon-head bolt		12
		M 8 X 32
6	016 301 231 F	lid		1
7	016 301 299	dowel sleeve		2
8	016 301 235 C	gasket		1
9	084 301 143 A	magnet		2
10	N 014 715 1	pan-head Schraube		7
		M 8 X 45
11	900 025 007 02	washer		5
		8,4
12	088 301 467 B	lid		1
13	N 013 371 1	straight pin		1
		6 M 6 X 24
14	019 301 115	stopper		2

Pos	__Part_Number__	Description	Remark	Qty.	Model
15	083 311 123	needle sleeve		1
	TPP
16	014 301 473	guide sleeve		1
17	014 301 485	cap		1
18	084 941 521	switch		1
19	477 599 181 A	protective plate		1
20	016 301 455 A	gasket		1
21	016 301 453 B	lid		1
22	928 303 120 01	shaft sealing ring		1
25	900 075 193 08	hexagon-head bolt		3
		M 6 X 16
26	N 012 226 5	spring washer		3
		B 6		1
31	016 311 113 C	radial shaft seal		1
32	N 090 194 2	hexagon-head bolt		3
		M 7 X 16
33	900 067 268 02	pan-head Schraube		3
		M 12 X 80
34	900 028 014 02	spring washer		3
		B 12
35	N 011 020 8	hexagon nut		1
		M 12
37	900 025 009 02	washer		4
		A 13
38	900 074 064 02	hexagon-head bolt		1
		M 10 X 60
39	900 025 008 09	washer		1
		A 10,5
40	N 012 230 6	spring washer		1
		B 10
41	N 011 010 13	hexagon nut		1
		M 10

Pos	__Part_Number__	Description	Remark	Qty.	Model
42	N 090 191 1	hexagon-head bolt		9
		M 8 X 35
43	088 409 131 C	lid		1
45	N 013 291 1	tensioning sleeve		1
		4 X 28
46	019 301 153	dowel sleeve		2
47	016 301 349	cover plate		1
49	088 311 123	needle sleeve		1
