Porsche 924S Differential Teile

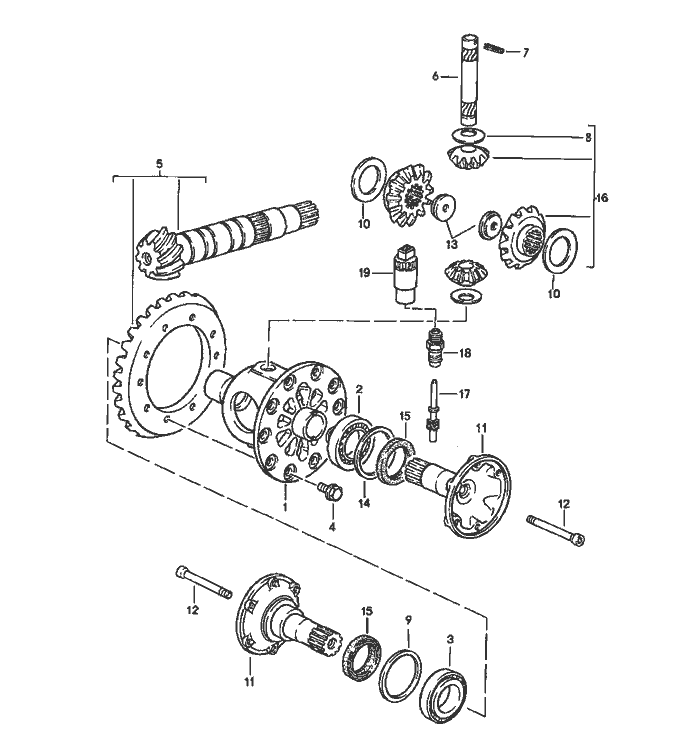

Pos	__Part_Number__	Description	Remark	Qty.	Model
		differential
		manual transmission
1	088 409 121 B	differential housing			1
2	016 409 123	taper roller bearing	Left		1
3	113 517 185 C	taper roller bearing	Right		1
4	088 409 135 A	hexagon-head bolt			10
		M 10 X 18
5	016 409 143 BF	ring gear and pinion shaft			1
		9 : 35
6	005 409 177	bolt			1
7	N 013 319 1	tensioning sleeve			1
		5 X 36
8	016 409 170	thrust washer			2
9	113 517 201 A	shim	Right		1
		0,15
9	113 517 202 A	shim	Right		X
		0,20
9	113 517 203 A	shim	Right		X
		0,30
9	113 517 204 A	shim	Right		X
		0,40
9	113 517 205 A	shim	Right		X
		0,50
9	113 517 206 A	shim	Right		X
		0,60
9	02A 409 210 A	shim	Right		X
		0,70
9	02A 409 210 C	shim	Right		X
		0,80
9	02A 409 210 E	shim	Right		X
		0,90
9	02A 409 210 G	shim	Right		X
		1,00

Pos	__Part_Number__	Description	Remark	Qty.	Model
9	113 517 211 A	shim	Right		X
		1,20
10	011 519 215	thrust washer			2
		0,50
10	088 409 249	thrust washer			X
		0,60
10	088 409 249 A	thrust washer			X
		0,70
10	088 409 249 B	thrust washer			X
		0,80
11	088 409 355 C	flanged shaft			2
12	088 409 359	Schraube			2
13	016 409 161	nut			2
14	018 409 381	shim	Left		1
		0,15
14	018 409 383	shim	Left		X
		0,20
14	018 409 385	shim	Left		X
		0,25
14	018 409 387	shim	Left		X
		0,50
14	018 409 389	shim	Left		X
		0,80
14	018 409 391	shim	Left		X
		1,00
14	018 409 393	shim	Left		X
		1,50
15	016 409 399 B	radial shaft seal			2
16	951 333 951 00	repair kit			1
		differential pinions
