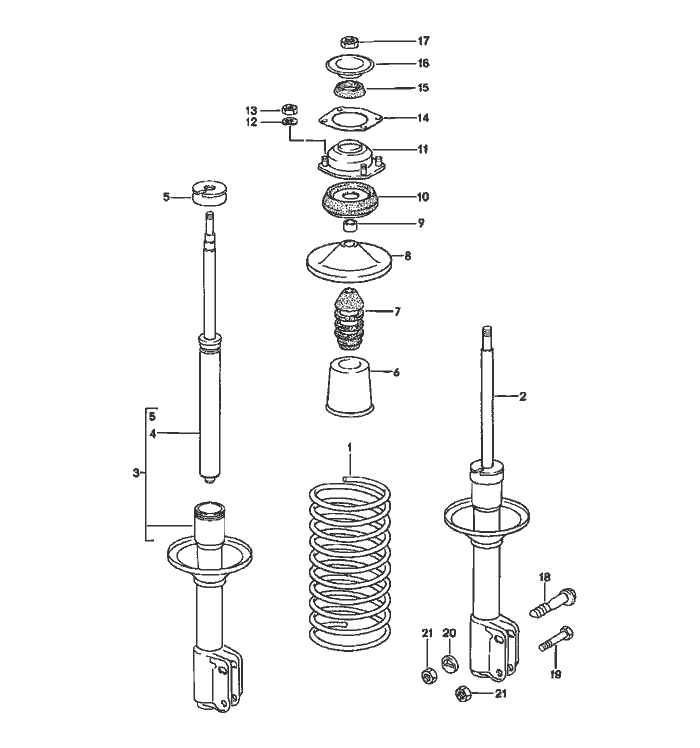

Porsche 924S Aufhängung Teile

Pos	__Part_Number__	Description	Remark	Qty.	Model
		suspension
		shock absorber
		front
1	477 411 105 Q	coil spring			1
		1 set
		identification
	954	blue
1	477 411 105 G	coil spring			1	M 030
		1 set
		identification
	954	red
2	944 343 031 12	vibration damper	Left		1
(2)	944 343 032 12	vibration damper	Right		1
3	944 343 031 11	vibration damper	Left		1	M 474
		-koni -
(3)	944 343 032 11	vibration damper	Right		1	M 474
		-koni -
(3)	944 343 051 00	damper	Left		1	M 030
		-koni -
(3)	944 343 052 00	damper	Right		1	M 030
		-koni
4	944 343 059 00	vibration damper			2	M 474
		insert
		-koni
5	171 412 045	union nut			2
6	171 412 135	boot			2
7	171 412 303 C	rubber stop			2
8	133 412 341	concave washer			2
9	823 412 365	spacer sleeve			2
10	944 343 071 00	suspension strut mounting			2
11	477 412 345	bearing flange			2
12	N 012 228 3	spring washer			8
		B 8

Pos	__Part_Number__	Description	Remark	Qty.	Model
13	900 076 025 02	hexagon nut M 8		8
(14)	133 412 367	sealing ring		2
15	477 412 411	stop ring		2
16	477 412 147	stop		2
17	N 022 150 1	lock nut VM 14 X 1,5		2
18	171 407 265	eccentric Schraube		2
19	900 082 058 02	hexagon-head bolt M 12 X 1,5 X 55 use also:		2
-	901 333 143 02	washer 12,4 X 25 X 4		4
20	944 343 175 00	eccentric washer		2
21	N 022 141 4	lock nut VM 12 X 1,5		4
