Porsche 924S Lenkung Gear Teile

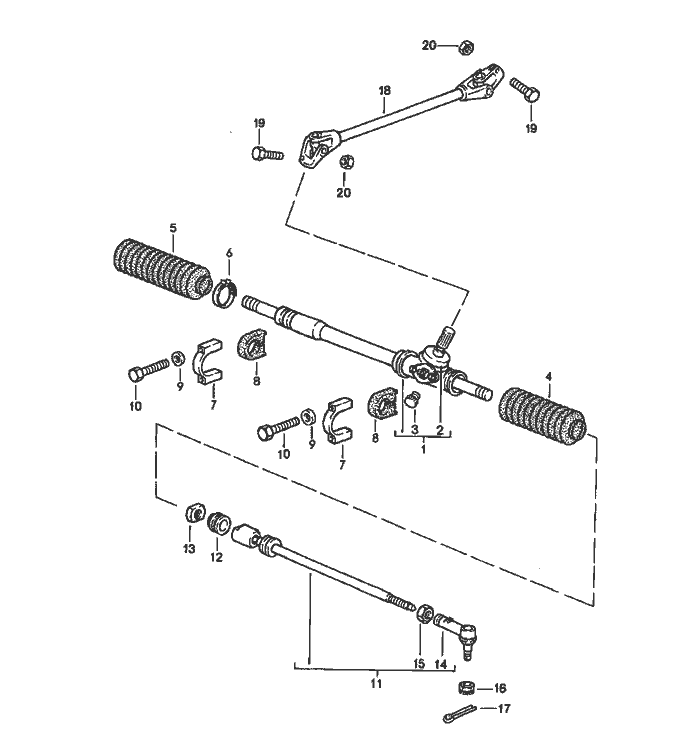

Lenkung Gear


Pos__Part_Number__DescriptionRemarkQty.Model
  steering gear
  tie rod
1 944 347 011 00steering gear Left Hand Drive 1
2 477 419 321cap   1
3 477 419 115stopper   1
4 171 419 831 Cboot Left 1
5 171 419 832 Cbellows Right 1
6 823 419 843terminal   1
  $ 45 MM
7 944 347 223 01clip Left Hand Drive 2
8 944 347 137 00rubber insert Left 1
(8) 944 347 139 00rubber insert Right 1
9 900 025 007 02washer   2
  A 8,4
10 N 010 360 6hexagon-head bolt Left Hand Drive 4
  M 8 X 60
11 944 347 033 01tie rod   2
12 477 419 827stop ring   2
13 171 419 855nut   2
  M 22 X 1,5
14 944 347 333 01ball joint   2
15 N 011 163 3hexagon nut   2
16 N 011 212 2castle nut   2
17 N 012 532 1cotter pin   2
  3 X 25
18 944 347 027 01drive shaft Left Hand Drive 1
19 N 010 335 7hexagon-head bolt   2
  M 8 X 35
20 900 910 022 09lock nut   2
